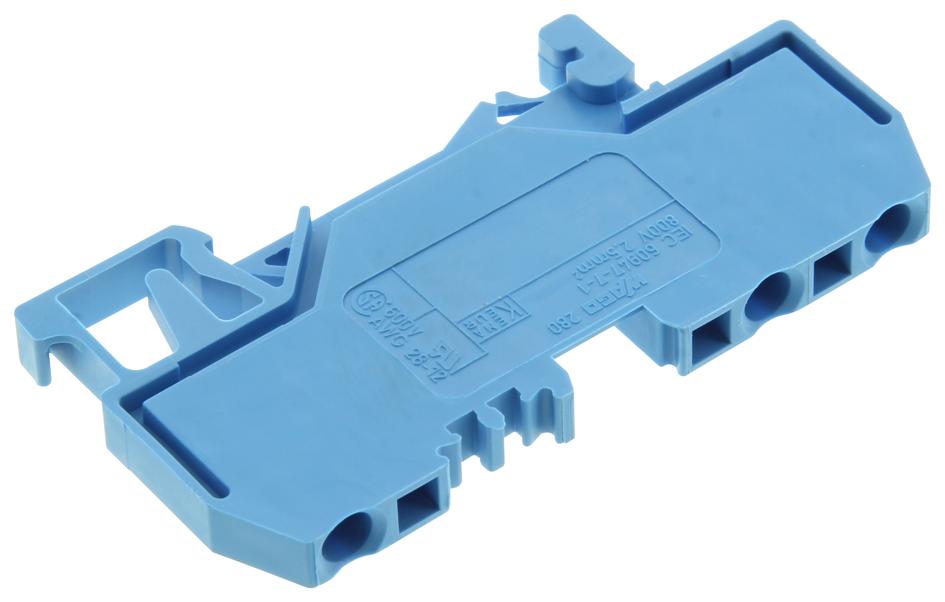

WAGO 280684 3-Conductor Through Terminal Block
The WAGO 280-684 is a robust 3-conductor through terminal block specifically engineered for use in potentially explosive atmospheres (EX I). It features WAGO’s innovative CAGE CLAMP® connection technology, ensuring a secure and vibration-resistant connection for conductors ranging from 28-12 AWG (0.08 - 2.5 mm²). The block is designed for front-entry wiring and is easily mounted on TS 35 rails, making it ideal for industrial control panels and machinery. Its compact dimensions (28mm height, 5mm width, 64mm depth) and robust construction contribute to its suitability for demanding environments.
WAGO 280684 3-Conductor Through Terminal Block Specifications:
- Product Group: Rail Mounted Terminal Blocks
- Cross Section (mm²): 0.08 - 2.5 mm²
- Cross Section (AWG): 28 - 12 AWG
- Connection Method: CAGE CLAMP® CONNECTION
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 24 A
- Weight: 7.66 g
- Color: blue
- Wiring Type: Front-entry
- No. of Connection Points: 3
- No. of Potentials: 1
- Height: 28 mm
- Height (in): 1.1 in
- Width: 5 mm
- Width (in): 0.197 in
- Depth: 64 mm
- Depth (in): 2.52 in
- Strip Length From: 8 mm
- Strip Length To: 9 mm
- Strip Length (in): 0.33 in
- Mounting: TS 35
Buy the 280-684 WAGO 3-Conductor Through Terminal Block | myMectronic
Purchase the WAGO 280-684 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 280684?
You can click on the BUY or RFQ button to purchase 280684 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 280684?
You can download the 280684 datasheet or visit the WAGO website for support.
Who is the manufacturer of 280684?
WAGO
