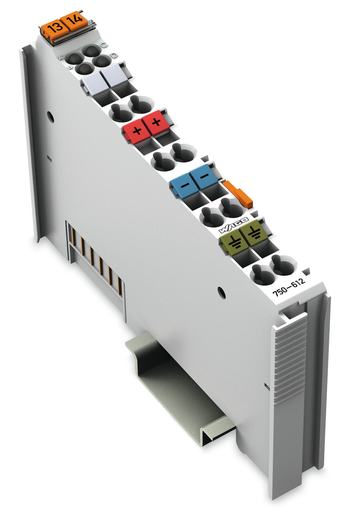

WAGO 750612 Power Supply Module
The WAGO 750-612 is a power supply module designed to provide the appropriate voltage to I/O modules within a system. It offers a maximum current output of 10A, requiring intermediate modules for higher current demands. This module is ideal for industrial automation, control systems, and machine building applications where reliable power distribution is essential. It features CAGE CLAMP® connection technology for secure and efficient wiring and is housed in a durable polycarbonate/polyamide 6.6 enclosure.
WAGO 750612 Power Supply Module Specifications:
- Signal type: AC/DC 0 … 230 V
- Supply voltage (system): 5 VDC (via data contacts)
- Supply voltage (field): 230 VAC/DC (-15 … +10 %) (via power jumper contacts)
- Number of outgoing power jumper contacts: 3
- Current carrying capacity (power jumper contacts): 10 A
- Connection technology (field supply): 6 x CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Width: 12 mm / 0.472 inch
- Height: 100 mm / 3.937 inch
- Depth: 69.8 mm / 2.748 inch
- Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch
- Housing material: Polycarbonate; polyamide 6.6
- Fire load: 1.091 MJ
- Weight: 43.6 g
- Conformity marking: CE
- Surrounding air temperature (operation): 0 … 55 °C
- Surrounding air temperature (storage): -40 … 85 °C
- Protection type: IP20
- Pollution degree: 2 per IEC 61131-2
- Operating altitude: 0 … 2000 m
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: per EN 61000-6-2, marine applications
- EMC emission of interference: per EN 61000-6-4, marine applications
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H S contaminant concentration: 10 ppm
- Permissible SO contaminant concentration: 25 ppm
- Product Group: 15 (Remote I/O)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454393793
- Customs tariff number: 85389091890
