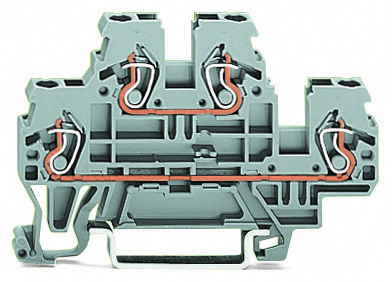

WAGO 870503 Double-deck Terminal Block
The WAGO 870-503 double-deck terminal block provides a robust and efficient solution for connecting multiple conductors in industrial environments. Its double-deck design maximizes space utilization on DIN rails, while the CAGE CLAMP® connection ensures secure and reliable terminations. Suitable for applications in control cabinets, automation systems, and power distribution, the 870-503 offers a combination of performance, safety, and ease of use. The gray color provides clear visual identification and organization within electrical systems.
WAGO 870503 Double-deck Terminal Block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 4
- Total number of potentials: 2
- Number of levels: 2
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 40 mm / 1.575 inch
- Depth: 70 mm / 2.756 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L/N
- Marking level: Side marking
- Color: gray
- Fire load: 0.168 MJ
- Weight: 10.1 g
- Country of origin: DE
- GTIN: 4044918630894
- Customs Tariff No.: 85369010000
