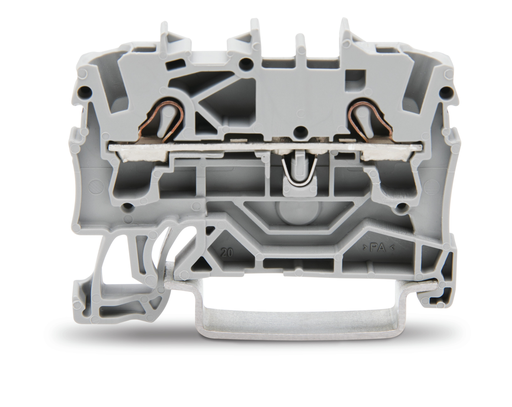

WAGO 20021201 2-Conductor Through Terminal Block
The WAGO 2002-1201 is a robust 2-conductor through terminal block specifically engineered for use in Ex e environments. Its compact dimensions (33mm height, 5.2mm width, 48.5mm depth) and secure clamping mechanism ensure reliable connections for wires ranging from 0.25 to 2.5 mm² (22-12 AWG). The terminal block's pollution degree rating of 3 and a measured voltage of 800V, along with a shock voltage of 8kV, make it suitable for demanding industrial applications where safety and reliability are paramount. The center/lateral marking simplifies identification and organization in complex wiring systems.
WAGO 20021201 2-Conductor Through Terminal Block Specifications:
- Cross section1: 0.25 - 2.5 mm²
- Cross section2: 22 - 12 AWG
- Strip length: 10 - 12 mm
- Measured voltage: 800 V
- Measured shock voltage: 8 kV
- Pollution degree: 3
- Current intensity: 24 A
- Height: 33 mm
- Width: 5.2 mm
- Depth: 48.5 mm
- No. of connection Points: 2
- No. of potentials: 1
- COLOR: grau
- WEIGHT: 4.369 g
Buy the 2002-1201 WAGO 2-Conductor Through Terminal Block | myMectronic
Purchase the WAGO 2002-1201 terminal block securely and efficiently to ensure reliable connections in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20021201?
You can click on the BUY or RFQ button to purchase 20021201 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20021201?
You can download the 20021201 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20021201?
WAGO
