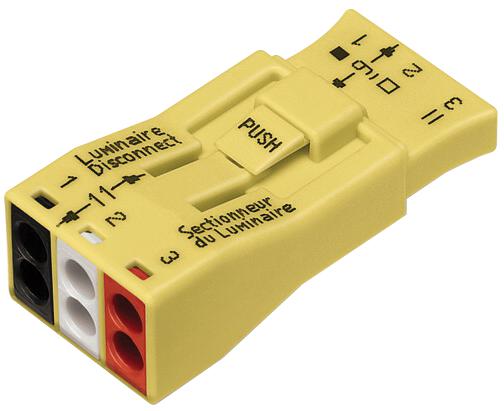

WAGO 873953 3-Pole Luminaire Disconnect Connector
The WAGO 873-953 is a robust 3-pole luminaire disconnect connector engineered for safe and efficient disconnection of electrical circuits. Its key feature is the PUSH WIRE® connection technology, which simplifies wiring and ensures a secure, vibration-resistant connection. Rated for 400V and 6A, it's ideal for lighting systems, power distribution panels, and other applications requiring frequent disconnection. The connector accepts copper conductors ranging from 0.75 to 4 mm² and is certified according to EN 61984 and UL 2459 standards, ensuring compliance and safety. Its compact dimensions (19x13.2x42 mm) make it suitable for space-constrained installations.
WAGO 873953 3-Pole Luminaire Disconnect Connector Specifications:
- Rated voltage (II / 2): 400 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 6 A
- Connection type (1): Plug
- Connection technology: PUSH WIRE®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Solid conductor: 0.75 … 4 mm² / 18 … 12 AWG
- Stranded conductor: 1.5 … 2.5 mm² / 16 … 12 AWG
- Strip length: 11 … 13 mm / 0.43 … 0.51 inch
- No. of poles: 3
- Connection type (2): Socket
- Solid conductor (2): 0.75 mm² / 18 AWG
- Strip length (2): 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 9
- Total number of potentials: 3
- Width: 19 mm / 0.748 inch
- Height: 13.2 mm / 0.52 inch
- Depth: 42 mm / 1.654 inch
- Color: yellow
- Fire load: 0.144 MJ
- Weight: 7 g
- Product Group: 8 (Misc. Chassis Mount Blocks)
- Packaging type: bag
- Country of origin: CN
- GTIN: 4050821857952
- Customs Tariff No.: 85366990990
- Approval: CCA EN 61984
- Additional Approval Text: NTR NL-
- Certificate: 7390
- UL Approval: UL 2459
- UL Certificate: E313353
