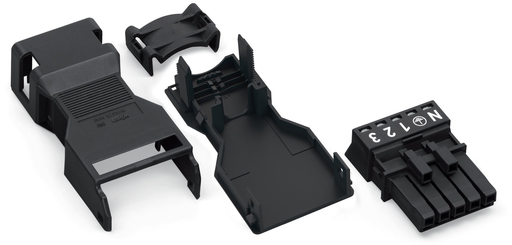

WAGO 890105 5-pole Socket Connector
The WAGO 890-105 is a 5-pole socket connector designed for reliable and maintenance-free connections in a variety of industrial settings. Utilizing WAGO’s innovative push-in CAGE CLAMP® spring pressure connection technology, it allows for simple and secure termination of solid conductors. The connector's compact design and 4.4 mm pole spacing optimize space utilization. It includes a strain relief housing for enhanced durability and protection. The design incorporates features to prevent mismating, ensuring consistent and dependable performance. Suitable for applications requiring robust and secure electrical connections.
WAGO 890105 5-pole Socket Connector Specifications:
- Color: black
- Overall length when mated: Not specified
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 13 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 12 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross section: 1.5 mm²
- Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid conductor, push-in termination: 0.75 … 1.5 mm² / 20 … 16 AWG
- Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
- Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 mm² / 20 AWG
- Strip length: 9 mm / 0.35 inch
- No. of poles: 5
- Total number of connection points: 5
- Total number of potentials: 5
- Connectable sheathed cable diameter: 6.5 … 10.5 mm
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 4.4 mm / 0.173 inch
- Width: 26.7 mm / 1.051 inch
- Height: 15.8 mm / 0.622 inch
- Depth: 71.9 mm / 2.831 inch
- Mating force of a plug-in connection: approx. 20 … 70 N
- Retention force of a plug-in connection: > 80 N
- Unmating force of a plug-in connection: approx. 20 … 70 N
- Number of mating cycles: 200 (without resistive load)
- Protection class: IP20
- Contact type (pluggable connector): Female connector/socket
- Mismating protection: Yes
- Locking of plug-in connection: locking lever
- Strain relief: strain relief housing
- Insulating material: Polyamide 66 (PA 66)
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Copper or copper alloy, surface-treated
- Fire load: 0.29 MJ
- Weight: 11.9 g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
