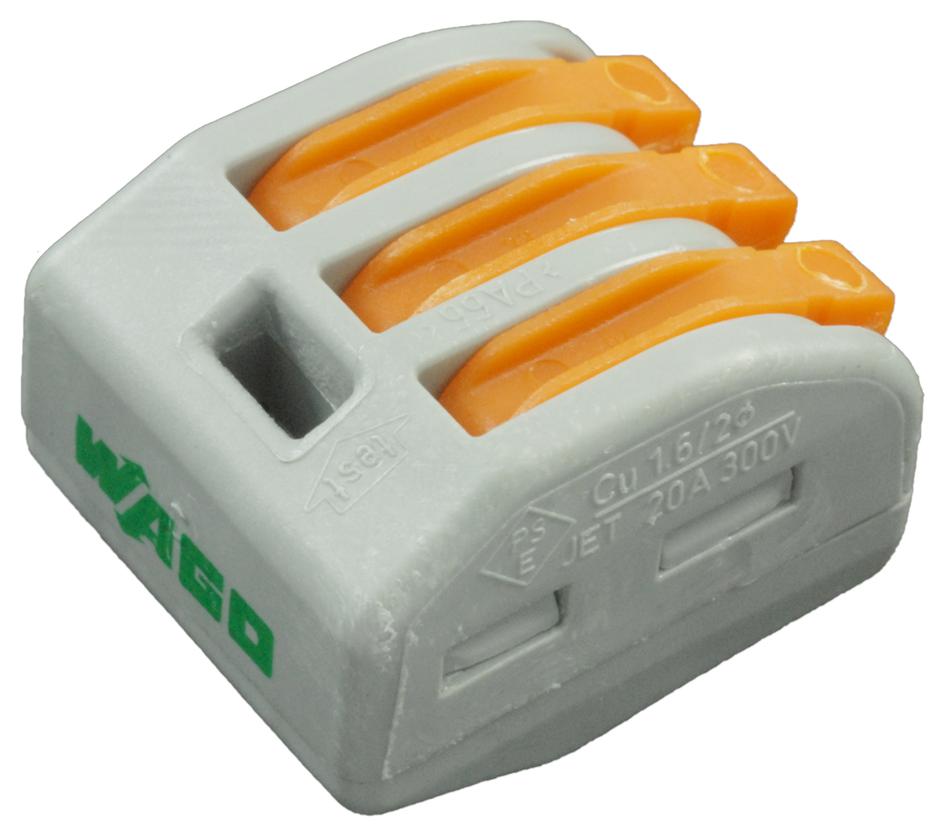

WAGO 222413 Splicing Connector
The WAGO 222-413 splicing connector provides a tool-free solution for connecting multiple conductors, simplifying wiring tasks in various industrial applications. Its lever-operated design allows for easy insertion and secure clamping of conductors ranging from finestranded to solid and stranded types. This connector is ideal for applications such as connecting pre-wired components in mobile homes, wiring junction boxes, and connecting lighting fixtures. The lever's rest position enhances safety by preventing accidental unclamping. It is suitable for use in low-voltage lighting systems and other electrical installations where efficient and reliable connections are required.
WAGO 222413 Splicing Connector Specifications:
- Nominal Voltage (II/2): 400 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 32 A
- Connectable Conductor Materials: Copper
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 9 … 10 mm / 0.35 … 0.39 inch
- Number of Connection Points: 3
- Number of Potentials: 1
- Width: 17 mm / 0.669 inch
- Height: 14.5 mm / 0.571 inch
- Depth: 20.5 mm / 0.807 inch
- Color: gray
- Flammability Class (UL94): V0
- Fire Load: 0.088 MJ
- Actuator Color: orange
- Weight: 4.3 g
- Surrounding Air Temperature (Operation): 40 °C
- Continuous Operating Temperature: 85 °C
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4017332955676
- Customs Tariff Number: 85369010000
