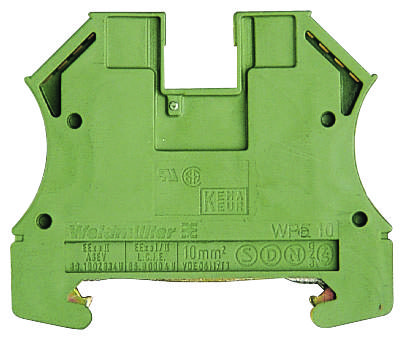

WEIDMULLER 1010300000 PE Terminal Screw Connection
The Weidmuller WPE 10 is a high-reliability PE terminal block designed for secure and efficient grounding in a variety of industrial applications. Featuring a screw connection mechanism, it ensures a robust and dependable connection. The terminal block is constructed from Wemid material, offering excellent insulation and flame retardancy (UL 94 V-0). It is suitable for use in electrical panels, distribution boards, and other applications where reliable grounding is essential. The WPE 10 is designed to meet stringent safety standards and provides a proven solution for a range of different requirements, contributing to optimized operational safety.
WEIDMULLER 1010300000 PE Terminal Screw Connection Specifications:
- Type: PE terminal, Screw connection
- Wire size: 10 mm²
- Current rating: 1200 A
- Color: Green/yellow
- Width: 9.9 mm
- Height: 56 mm
- Depth: 46.5 mm
- Depth including DIN rail: 47 mm
- Width(inches): 0.39 inch
- Height(inches): 2.205 inch
- Depth(inches): 1.831 inch
- Net weight: 30.28 g
- Operating temperature range: For operating temperature see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature min: 10 °C
- Continuous operating temp min: -60 °C
- Storage temperature max: 40 °C
- Continuous operating temp max: 130 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Certificate No. (ATEX): DEMKO14ATEX1338U
- Wire cross section max. (ATEX): 10 mm²
- Certificate No. (IECEx): IECEXULD14.0005U
- Wire cross section max. (IECEx): 10 mm²
- Marking EN 60079-7: Ex eb II C Gb
- Version: Screw connection, With PE connection
- Number of potentials: 1
- Number of clamping points per level: 2
- Levels cross-connected internally: No
- Rail: TS 35
- PE function: Yes
- End cover plate required: No
- Number of levels: 1
- Number of potentials per tier: 1
- PE connection: Yes
- N-function: No
- PEN function: No
- Explosion-tested version: Yes
- Interlock for screw fixing: Open sides closed
- Installation advice: when screwed in
- Number of similar terminals: 1
- Type of mounting: when screwed in
- Certificate No. (CSA): 200039-1888378
- Wire cross section min. (CSA): 16 AWG
- Wire cross section max. (CSA): 6 AWG
- Blade size: 1.0 x 5.5 mm
- Clamping range min: 1.31 mm²
- Connection cross-section stranded max: 16 mm²
- Tightening torque max: 2.4 Nm
- Type of connection: Screw connection
- Wire connection cross-section finely stranded with wire-end ferrules DIN 46228/1 max: 16 mm²
- Wire connection cross-section finely stranded with wire-end ferrules DIN 46228/4 max: 16 mm²
- Wire connection cross-section finely stranded min: 1.5 mm²
- Wire connection cross-section solid core min: 1.5 mm²
- Clamping range max: 16 mm²
- Clampingscrew: M 4
- Connection cross-section stranded min: 1.5 mm²
- Gauge to IEC 60947-1: B6
- Stripping length: 12 mm
- Tightening torque min: 1.2 Nm
- TS 35 offset: 32 mm
- Rated short-time current: 1200 A
- Tightening torque range for fixing screw: 0.5...1.0 Nm
- Centre screw on PE terminals: M 3
- Rated cross-section: 10 mm²
- Standards: IEC 60947-7-2
- Power loss in accordance with IEC 60947-7-x: 1.82 W
- Pollution severity: 3
- Rated voltage to adjoining terminal: 800 V
- Volume resistance according to IEC 60947-7-x: 0.56 mΩ
- Rated impulse withstand voltage to adjacent terminal: 8 kV
