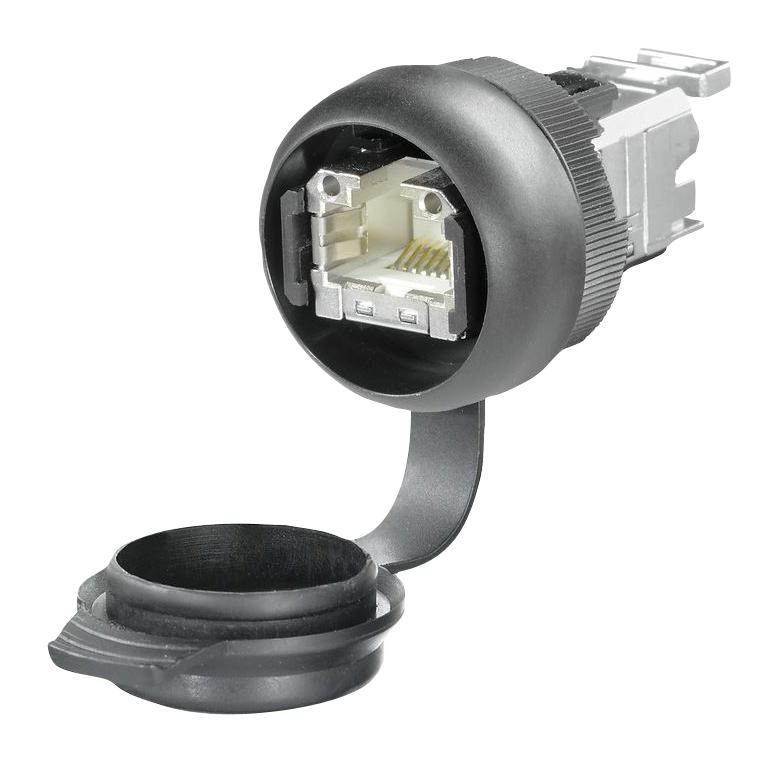

WEIDMULLER 1018830000 Industrial Ethernet RJ45 Module
The FrontCom Micro RJ45 module is designed for industrial Ethernet applications, offering reliable PROFINET connectivity with IP67 protection in a compact housing. It features a gold-over-nickel contact surface, supporting wiring from AWG 26 to AWG 22, with maximum sheath diameter of 10 mm. The device operates within -40°C to 70°C temperatures, ensuring durability in harsh environments. Mounting options include cabinet or distribution box, with a tightening torque of 2Nm. It supports 750 plugging cycles and conforms to PoE/PoE+ standards, suitable for industrial automation networks.
WEIDMULLER 1018830000 Industrial Ethernet RJ45 Module Specifications:
- Housing Material: PA UL 94 VO
- Protection Degree (closed state): IP67
- Operating Temperature: -40°C to 70°C
- Max Wall Thickness: 3mm
- Connection Diameter, Solid: 0.4 to 0.64 mm
- Connection Diameter, Flexible: 0.48 to 0.76 mm
- Conductors: AWG 26 to AWG 22, Sheath Diameter Min: 5.5mm, Max: 10mm
- Tightening Torque Fixing Nut: 2Nm
- Wiring Type: IDC module
- Shielding: 360° shield contact
- Plugging Cycles: 750
- Supports PoE/PoE+ per IEEE 802.3af
- Connector Standard: IEC 60603-7-51
- Certifications: RoHS, Conform
- Connection Type: R45
- Color: Black
- Dimensions support installation in cabinet or distribution box
Buy the Weidmiiller IE-FCM-RJ45-FJ-P – Reliable Industrial Ethernet Module for PROFINET Networks
Enhance your industrial communication setup with the Weidmiiller RJ45 Ethernet module. Designed for PROFINET applications, it offers IP67 protection, robust gold contacts, and reliable performance in harsh environments. Easy to install in cabinets or distribution boxes, supports PoE/PoE+, and withstands up to 750 plug cycles, ensuring long-term durability. Its compact design with flexible wiring makes it ideal for factory automation, industrial networks, and outdoor installations. Purchase online and benefit from quick delivery and expert support.
Buy Weidmiiller IE-FCM-RJ45-FJ-P now and upgrade your industrial Ethernet connections with IP67 protection and PoE support.
Frequently Asked Questions
Where can I buy WEIDMULLER 1018830000?
You can click on the BUY or RFQ button to purchase 1018830000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1018830000?
You can download the 1018830000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1018830000?
WEIDMULLER
