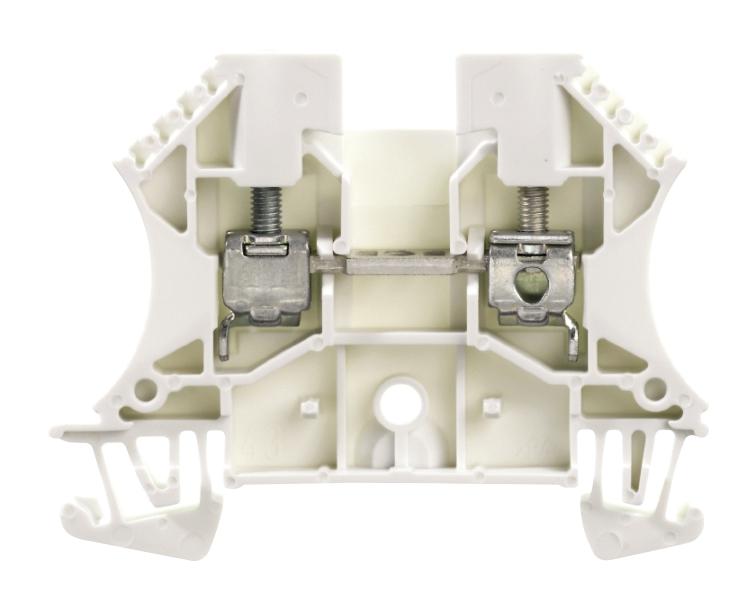

WEIDMULLER 1036700000 Feed-through Terminal Block
The Weidmuller WDU 4 WS is a feed-through terminal block designed for reliable and safe electrical connections. Utilizing clamping yoke technology, this terminal block simplifies planning and enhances operational safety. It's suitable for a wide range of industrial applications, including power distribution, control systems, and automation equipment. The terminal block features a screw connection, accommodates wires up to 4 mm², and is rated for voltages up to 800V and currents up to 32A. Constructed from Wemid material with a V-0 flammability rating, it ensures durability and safety in demanding environments. Its compact design and easy-to-use features make it a versatile choice for various electrical projects.
WEIDMULLER 1036700000 Feed-through Terminal Block Specifications:
- Base Material: Wemid
- Flammability Rating: V-0
- Width: 6.1 mm
- Height: 60 mm
- Depth: 46.5 mm
- Depth with DIN Rail: 47 mm
- Net Weight: 9.46 g
- Operating Temperature Range: -60 °C to 130 °C
- Storage Temperature Range: 10 °C to 40 °C
- Rated Voltage: 800 V
- Rated Current: 32 A
- Rated Cross-section: 4 mm²
- Standards: IEC 60947-7-1
- Pollution Severity: 3
- Tightening Torque: 1 Nm
- Wire Connection Cross-section (min): 0.5 mm²
- Wire Connection Cross-section (max): 6 mm²
- UL Voltage: 600 V
- UL Current: 35 A
- UL Wire Size (min): 22 AWG
- UL Wire Size (max): 10 AWG
- Explosion-tested version: Yes
Buy the 1036700000 WEIDMULLER Feed-through Terminal Block | myMectronic
Purchase the Weidmuller 1036700000 WDU 4 WS terminal block securely online for your industrial automation needs.
Buy Now
