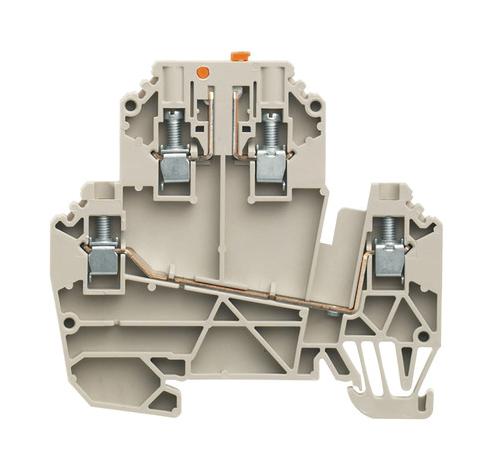

WEIDMULLER 1247290000 Screw Terminal Block
The WDK 2.5/TR-DU is a high-reliability screw connection terminal block with a test disconnect feature, rated for 500 V and 24 A. It features a durable Wemid material in dark beige, with a compact size, dimensions of approximately 72.5mm (height) by 67.5mm (depth), and a width of 5.1mm. Its snap-on mounting facilitates quick installation. Designed for multiple potentials across two levels, this terminal block supports wire cross-sections up to 4mm², with a clamping screw size M3. It maintains UL 94 V-0 flammability rating, ensuring safety and efficiency in industrial applications.
WEIDMULLER 1247290000 Screw Terminal Block Specifications:
- Width: 5.1mm (0.201 inch)
- Height: 72.5mm (2.854 inch)
- Depth: 67.5mm (2.657 inch)
- Material: Wemid, dark beige, UL 94 V-0 rated
- Rated voltage: 500 V
- Rated current: 24A
- Clamping range: 0.5 mm to 4 mm
- Screw size: M3
- Number of potentials: 2
- Number of levels: 2
- Connection cross-section (stranded): max 4mm², min 0.5mm²
- Connection cross-section (solid): max 4mm², min 0.5mm²
- Operating temperature: -50°C to 120°C
- Storage temperature: -25°C to 55°C
- Net weight: 14.86 g
- UL and CSA approved, safety-rated for industrial wiring
Buy the Weidmueller Series WDK 2.5/TR-DU: Screw Connection Terminal Block
Enhance your electrical installations with the Weidmueller Series WDK 2.5/TR-DU screw terminal block, designed for reliable connections up to 24 A and 500 V. Its compact design and snap-on mounting allow quick installation, while the wide range of wire cross-sections ensures versatility. Ideal for industrial environments, it features UL 94 V-0 flame rating, multiple potentials, and excellent safety standards. Purchase online today to secure high-quality, dependable terminal blocks for your automation and wiring needs.
Order your Weidmueller Series WDK 2.5/TR-DU screw terminal block today and experience reliable, efficient connections for your industrial projects.
