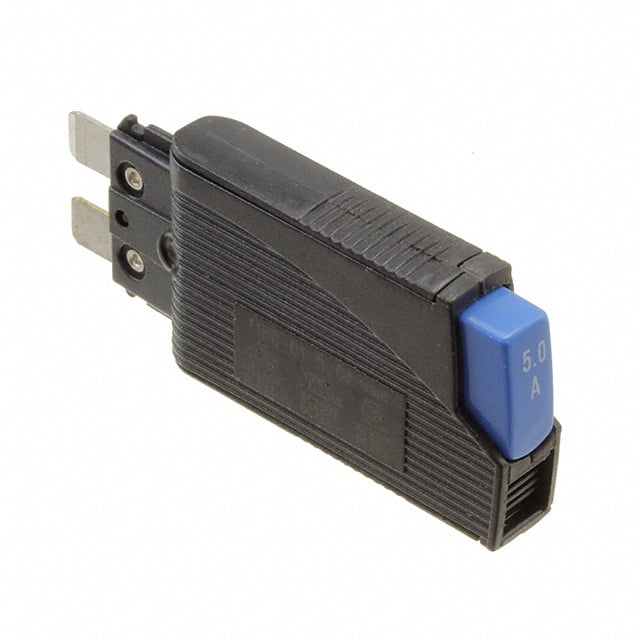

WEIDMULLER 1279030000 Fuse Cartridge 5A
The WEIDMULLER ETA 1180 01 5A fuse cartridge employs tension clamp technology, a universal contact system suitable for various conductor connection types. This innovative design provides exceptional flexibility, making it a cost-effective alternative to traditional connections. The cartridge is designed for direct mounting and plugged connections, offering a robust and reliable solution for industrial applications. It is RoHS compliant and suitable for a wide range of electrical systems requiring a 5A fuse capacity at 64V DC.
WEIDMULLER 1279030000 Fuse Cartridge 5A Specifications:
- Type: ETA 1180 01 5A
- Order No.: 1279030000
- Version: Fuse cartridge
- GTIN(EAN): 4050118091465
- Quantity: 5 pc(s).
- Width: 8.2 mm
- Width(inches): 0.323 inch
- Height: 24.4 mm
- Height(inches): 0.961 inch
- Depth: 52.3 mm
- Depth(inches): 2.059 inch
- Net weight: 10.6 g
- Colour: black
- Installation advice: Direct mounting
- Type of mounting: Plugged
- Rated voltage: 64 V DC
- Rated current: 5 A
- ETIM 5.0: EC000886
- eClass 6.2: 27-14-20-90
- eClass 8.1: 27-14-11-33
- eClass 9.1: 27-14-20-01
- ETIM 6.0: EC000035
- eClass 7.1: 27-14-11-33
- eClass 9.0: 27-14-20-01
- ROHS: Conform
- EngineeringData: EPLAN, WSCAD
- Engineering Data: STEP
