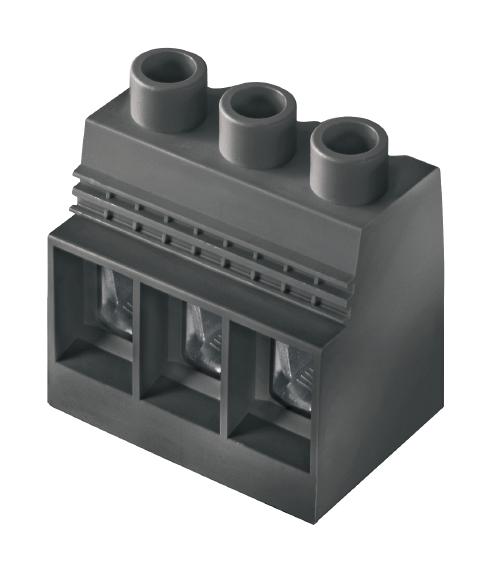

WEIDMULLER 1386850000 Power PCB Terminal
The LXXX 15.00/09/90 4.5SN BK BX is a high-current PCB connection terminal designed for power electronics. It features a robust steel clamping-yoke technology for secure, reliable connections rated at 150 A and 1000 V, ideal for power density and miniaturization. The compact design simplifies assembly and maintenance by replacing complex bolt or bus bar connections, enabling efficient system integration. Suitable for PCB mounting, it ensures enhanced application security, optimized footprint, and ease of use in demanding industrial applications, supporting wires up to 50 mm².
WEIDMULLER 1386850000 Power PCB Terminal Specifications:
- Rated voltage: IEC 1000 V, UL 600 V, CSA 600 V
- Rated current: 150 A (IEC), 126 A (UL/CSA)
- Current capacity: up to 50 mm² wire cross-section
- Number of poles: 9
- Solder pin length: 4.5 mm
- Width: 136 mm (5.354 inches)
- Height: 56 mm (2.205 inches)
- Depth: 31 mm (1.22 inches)
- Material: Insulating Wemid (PA), copper alloy contacts
- Flammability rating: UL 94V-0
- Insulation strength: 210°C, CTI > 600
- Clampable conductor: wires from AWG 20 to AWG 1, up to 50 mm², with crimp end ferrules
- Clamping range: 0.5 mm² to 50 mm²
- Mounting: Thru-hole solder connection, 90° outlet
- Tightening torque: min 2.5 Nm, max 4 Nm
- Operating temperature: -50°C to 120°C
- Storage temperature: -40°C to 70°C
Buy the Weidmueller 1386850000 – Reliable Power PCB Terminal for Industrial Applications
Secure your power electronics with the high-current PCB terminal from Weidmueller. Rated at 150 A and 1000 V, it supports wires up to 50 mm². The robust steel clamping-yoke technology guarantees reliable contact and ease of installation. Its compact design reduces space and complexity, making it ideal for demanding industrial environments. Suitable for PCB mounting and wire crimping, this terminal ensures lasting durability, safety, and high performance for system development, production, and maintenance tasks. Purchase online today for trusted quality and professional-grade connectivity.
Order your Weidmueller Series LXXX 15.00/09/90 4.5SN BK BX today and ensure your power electronics system features secure, high-current PCB connections for industrial projects.
