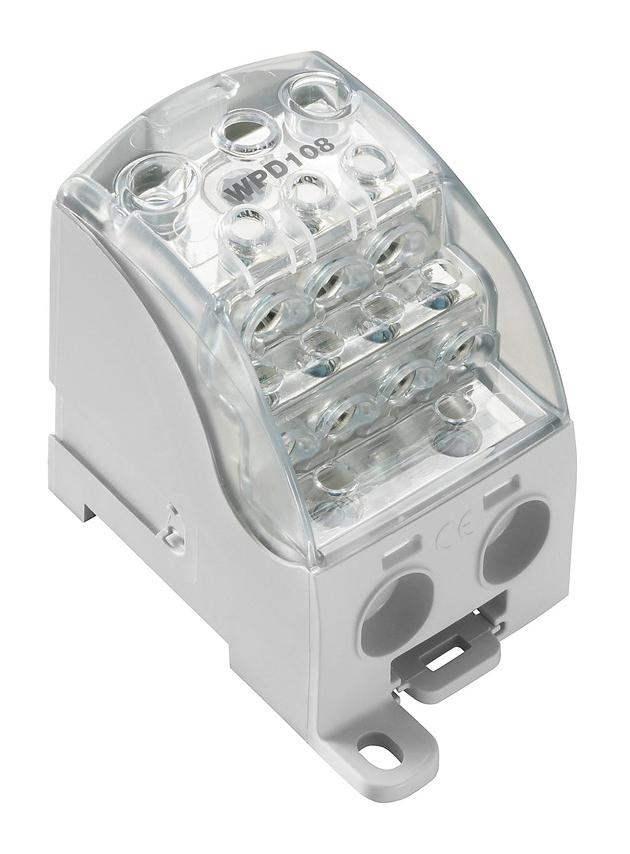

WEIDMULLER 1562100000 Power Distribution Terminal Block
The WPD 108 terminal block from the W-Series offers a versatile power distribution solution suitable for neutral and earth conductor distribution. Made from flame-retardant Wemid material, it features a screw connection for secure wiring, with a rated voltage of up to 1100 V (AC) and current capacity of 250A. Its compact dimensions include a width of 51.1mm, height of 95mm, and depth of 77mm, making it ideal for space-efficient installations in industrial and electrical control panels. Certified for international standards including UL, IECEx, ATEX, and RoHS, it ensures safety and reliability in diverse environment conditions.
WEIDMULLER 1562100000 Power Distribution Terminal Block Specifications:
- Material: Wemid, light grey
- Flammability rating: UL 94V-0
- Rated voltage: 1100 V (ATEX), 1000 V AC, 1500 V DC
- Rated current: 250A
- Dimensions: Width 51.1mm, height 95mm, depth 77mm
- Temperature ranges: Storage -25°C to 55°C, operation -50°C to 130°C
- Environmental compliance: REACH SVHC Lead (7439-92-1), RoHS
- Standards: IEC 60947-7-1, UL 1059, UL, IECEx, ATEX
- Mounting: Snap-on rail, open sides, end cover plate optional
- Number of potentials: 1, number of levels: 1, clamping points per level: 2
- Connection: Screw terminal, side entry
- Approval: CE, UL, IECEx, ATEX, CSA
Buy the Weidmueller Series WPD: 108 1X120/2X35+3X25+4X16 GY
Purchase the Weidmueller WPD 108 terminal block online today for your industrial wiring needs. Designed to securely distribute power and neutral conductors, it features screw connection terminals rated up to 1100 volts and 250 amps. Its compact build with space-saving design makes it ideal for control panels and electrical systems. Certified with UL, IECEx, ATEX, and RoHS, ensuring safety, durability, and compliance for diverse environmental conditions. Easy to install with snap-on mounting and open-sided design for flexible wiring options.
Get Weidmueller WPD 108 today—built for secure power distribution with high capacity and reliable safety certifications.
