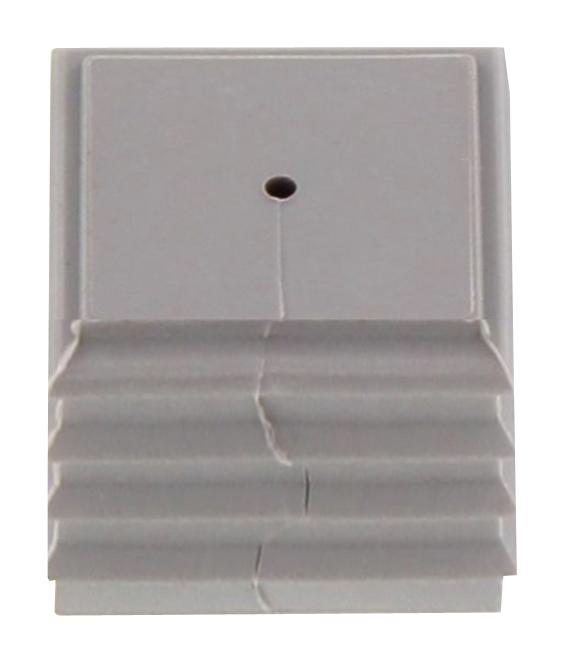

WEIDMULLER 2583360000 Conical Cable Gasket

This conical gasket features a slotted, wave-cut design suitable for preassembled cables, providing easy installation and effective sealing of gaps to ensure strain relief in accordance with DIN EN 62444 standards. It is inserted from the inside of the frame inlay and, when combined with the frame, achieves an IP66 degree of protection. Made from halogen-free and silicone-free grey TPE, it offers reliability with a small 1-hole clamping range of 1.5mm to 2mm. The gasket is rated V-0 for flammability and withstands temperatures from -40°C to +90°C in static conditions.

View 2583360000Datasheet [pdf]

Buy the Weidmuller Series Cabtite: Conical Cable Gasket 2583360000

Purchase the Weidmuller conical cable gasket 2583360000 online today to benefit from quick installation, dependable sealing, and optimal strain relief for your control cabinets and enclosures. Crafted from halogen-free TPE with a wave-cut, slotted design, it ensures an IP66 protection level. Suitable for small sealing ranges from 1.5mm to 2mm, it withstands temperatures from -40°C to +90°C, providing flexibility across a variety of applications. Secure your cables with this high-quality, easy-to-install sealing solution and ensure safety and compliance.

Buy Weidmuller conical gasket 2583360000 now and ensure reliable, IP66 rated sealing for preassembled cables in your control cabinets.
