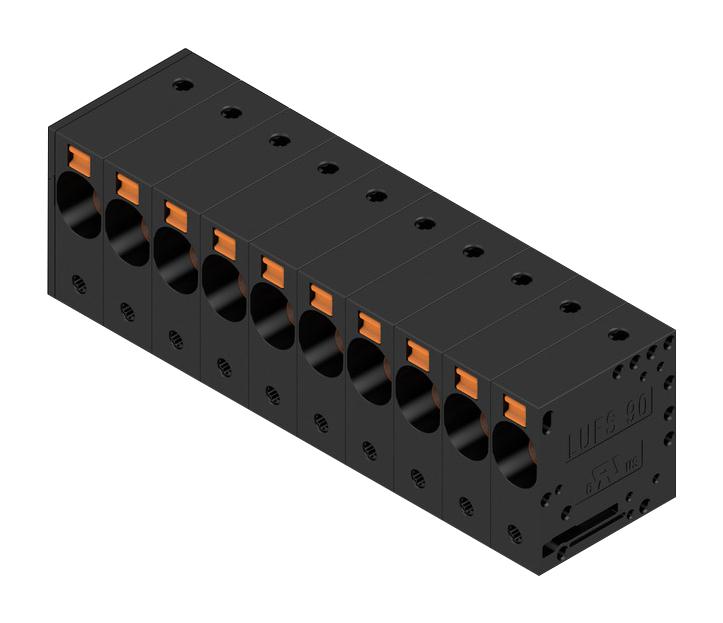

WEIDMULLER 2500530000 PCB Terminal
The Weidmueller LUFS 10.00/10/90V 5.0SN BK BX is a high-performance PCB terminal featuring a PUSH IN connection system that accommodates conductors up to 16 mm². Designed for ease of use, it allows fast, tool-free connections via pushers or a direct plug-in method, ensuring secure contact with the 'Connection Safety Concept'. Equipped with integrated test points for PS 2.0 test plugs and upper side probes, it enhances testing efficiency. Its insulated housing with increased derating reserves makes it suitable for demanding electrical applications, supporting quick installation and reliable performance.
WEIDMULLER 2500530000 PCB Terminal Specifications:
- Type: Printed circuit board terminal
- Number of poles: 10
- Connection system: PUSH IN without actuator
- Clamping range: 0.5 mm² to 16 mm²
- Solder pin length: 5 mm
- Dimensions: Width 101.8 mm, Height 35 mm, Depth 28.55 mm
- Material: Wemid (PA), black, operational elements: PAAT GF, insulating group: I
- Rated voltage IEC: 1000 V, UL: 600 V, CSA: 600 V
- Rated current: IEC max 76A, UL/CSA max 53A
- Number of solder pins per pole: 2
- Solder eyelet hole diameter: 1.6 mm
- Solder pin dimensions: d=1.2 mm, octagonal
- Operating temperature: -40°C to 120°C
- Storage temperature: -40°C to 70°C
- Insulation material: Wemid (PA) with CTI >600
- Flammability rating: UL 94 V0
- Rated impulse voltage: 8 kV
- Conductor connection: Solid, stranded, flexible wires compatible with AWG 18 to AWG 4, and various ferrules
- Width: 101.8 mm, Height: 35 mm, Depth: 28.55 mm
Buy the Weidmueller Series LUFS: PCB Terminal with PUSH IN Connection for Conductors up to 16 mm² - Part 2500530000
Purchase the Weidmueller Series LUFS PCB terminal online to ensure quick, tool-free connections for conductors up to 16 mm². Featuring a PUSH IN system, integrated test points, and high-quality insulating materials, it guarantees secure, reliable, and efficient electrical connections. Ideal for demanding environments, this terminal offers easy handling, increased derating reserves, and compliance with international standards. Buy now to enhance your electrical assembly with dependable connection technology designed for durability and safety.
Order your Weidmueller Series LUFS 10.00/10/90V 5.0SN BK BX today and give your electrical projects the dependable, fast, and secure connection they deserve.
