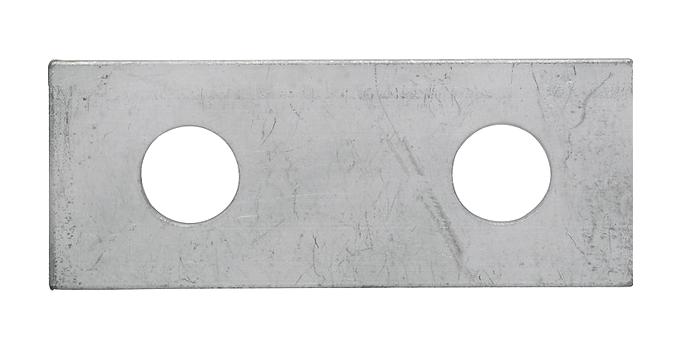

WEIDMULLER 1781010000 Bolt-type Screw Terminals
The Weidmuller WQL 2 WF10 is a bolt-type screw terminal, part of the Klippon Connect with stud technology, providing a robust and reliable connection solution for demanding industrial applications. Designed for harsh environments, it ensures high productivity during planning and installation while maintaining sustainable operational safety. The terminal's construction utilizes copper-zinc material and features a grey color finish. It is explosion-tested and fixed when screwed in, with a pitch of 10.16 mm. It boasts a rated current of 269 A and conforms to RoHS standards. Downloadable resources include EAC certificates, catalogs, and engineering data in various formats.
WEIDMULLER 1781010000 Bolt-type Screw Terminals Specifications:
- Type: WQL 2 WF10
- Order No.: 1781010000
- Version: Bolt-type screw terminals, Cross-connector, Number of poles: 2
- GTIN(EAN): 4032248219421
- Quantity: 5 pc(s).
- Width: 25 mm
- Height: 61.8 mm
- Depth: 4 mm
- Net weight: 48.01 g
- Width(inches): 0.984 inch
- Height(inches): 2.433 inch
- Depth(inches): 0.157 inch
- Storage temperature max: 55 °C
- Storage temperature min: -25 °C
- Material: Copper - zinc
- Colour: grey
- Explosion-tested version: No
- Type of fixing: when screwed in
- Pitch in mm (P): 10.16 mm
- Rated current: 269 A
- ETIM 6.0: EC000489
- eClass 9.0: 27-14-11-40
- eClass 10.0: 27-14-11-40
- ETIM 7.0: EC000489
- eClass 9.1: 27-14-11-40
- UNSPSC: 30-21-18-01
- Approvals: Conform
- ROHS: Conform
Buy the 1781010000 WEIDMULLER Bolt-type Screw Terminals | myMectronic
Purchase the Weidmuller 1781010000 Bolt-type Screw Terminal securely online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 1781010000?
You can click on the BUY or RFQ button to purchase 1781010000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1781010000?
You can download the 1781010000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1781010000?
WEIDMULLER
