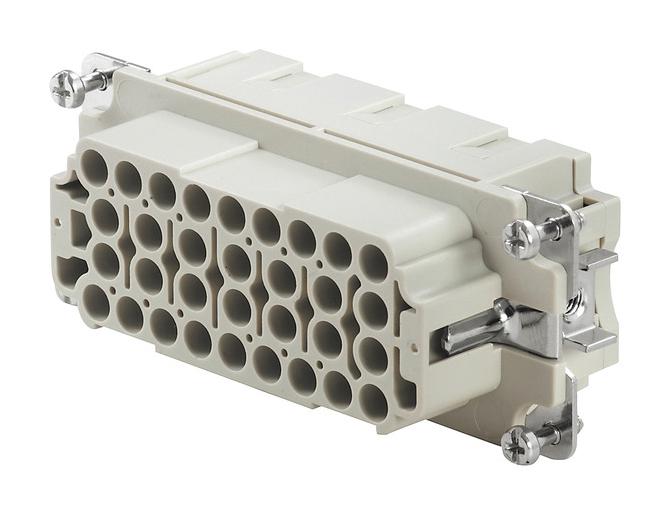

WEIDMULLER 1826800000 Industrial Interface Module
The HDC HEE 32 FC is a high-density interface module designed for industrial applications, featuring 32 poles with crimp connections capable of handling 500 V and 16 A. Constructed with insulative PC glass-fiber reinforced material, it offers excellent insulation and durability. The module supports up to 2500 plugging cycles and has a compact footprint of 34mm width, 36mm height, and 84.5mm depth. Suitable for demanding environments, it complies with UL, Reach, and RoHS standards, making it ideal for secure, reliable wiring connections in automation systems.
WEIDMULLER 1826800000 Industrial Interface Module Specifications:
- Number of poles: 32
- Rated voltage: 500 V (DIN EN 61984), 600 V (UL/CSA)
- Rated current: 16A
- Connection type: Crimp connection
- Conductor cross-section: 4mm² maximum, 0.5mm² minimum
- Wire cross section AWG: Max 12, Min 20
- Insulation material: PC glass-fibre reinforced
- Flammability rating: UL 94 V-0
- Dimensions: Width 34mm, Height 36mm, Depth 84.5mm
- Weight: 659g
- Temperature range: -40°C to +125°C
- Pollution severity: Level 3
- Plugging cycles: 2500
- Tightening torque (PE connection): 1.2 to 1.5 Nm
- Approval standards: UL, RoHS, Reach
Buy the Weidmiiller 1826800000 – Reliable Industrial Interface Module for Connecting Multiple Circuits
Order the Weidmiiller 1826800000 high-density interface module online today and enjoy seamless, secure electrical connections for demanding industrial environments. Designed for 32-pole applications, it supports 500 V and 16 A ratings, ensuring reliable power distribution. The crimp connection technology guarantees durable wiring with up to 2500 plugging cycles. Made from robust PC glass-fibre reinforced insulative material, it complies with UL, Reach, and RoHS standards. Perfect for automation and control systems, this compact module enhances operational efficiency and safety.
Buy Weidmiiller 1826800000 now and experience unmatched reliability and performance in industrial wiring and automation systems.
Frequently Asked Questions
Where can I buy WEIDMULLER 1826800000?
You can click on the BUY or RFQ button to purchase 1826800000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1826800000?
You can download the 1826800000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1826800000?
WEIDMULLER
