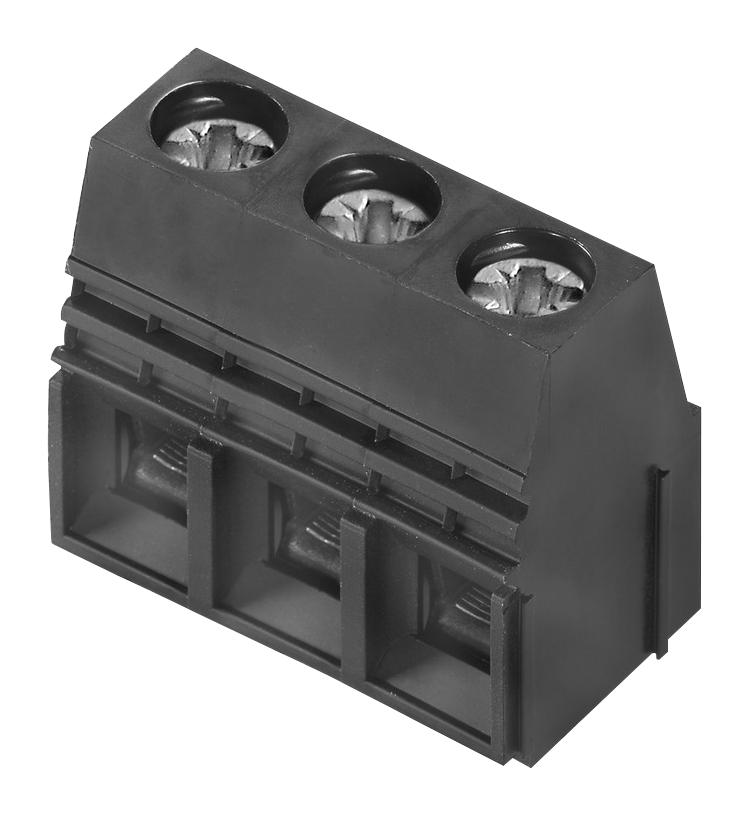

WEIDMULLER 1921450000 Power Terminal Connector
The WEIDMULLER OMNIMATE Power series LU terminal block provides robust connections for power applications. With a 10.16 mm pitch and a 90° conductor outlet direction, it's ideal for space-constrained designs. The clamping yoke connection ensures secure conductor termination, while the tinned solder pins facilitate easy PCB integration. Suitable for a wide range of industrial applications requiring high current carrying capacity and reliable performance.
WEIDMULLER 1921450000 Power Terminal Connector Specifications:
- Base Material: PA
- Color: Black
- Clamping Range Min: 0.14 mm²
- Clamping Range Max: 16 mm²
- Conductor Outlet Direction: 90°
- Contact Material: E-Cu
- Insulating Material Group: I
- L1 (mm): 20.32
- Max. Adjacent Pole Per Row: 10
- Mounting Type: THT Solder Connection
- No. of Poles: 3
- Pitch (mm): 10.16
- Pitch (inches): 0.4
- Solder Pin Length (l): 4.5 mm
- Solder Pin Dimensions: 1.2 x 1.2 mm
- Stripping Length: 12 mm
- Tightening Torque Max: 1.5 Nm
- UL Voltage: 300 V
- IEC Voltage: 1000 V
- IEC Current: 76 A
- UL Current: 65 A
- Touch-Safe Protection: IP20 plugged / IP10 unplugged
- Volume Resistance: 0.50 mΩ
- Storage Temperature Min: -25 °C
- Storage Temperature Max: 55 °C
- Operating Temperature Min: -50 °C
- Operating Temperature Max: 120 °C
