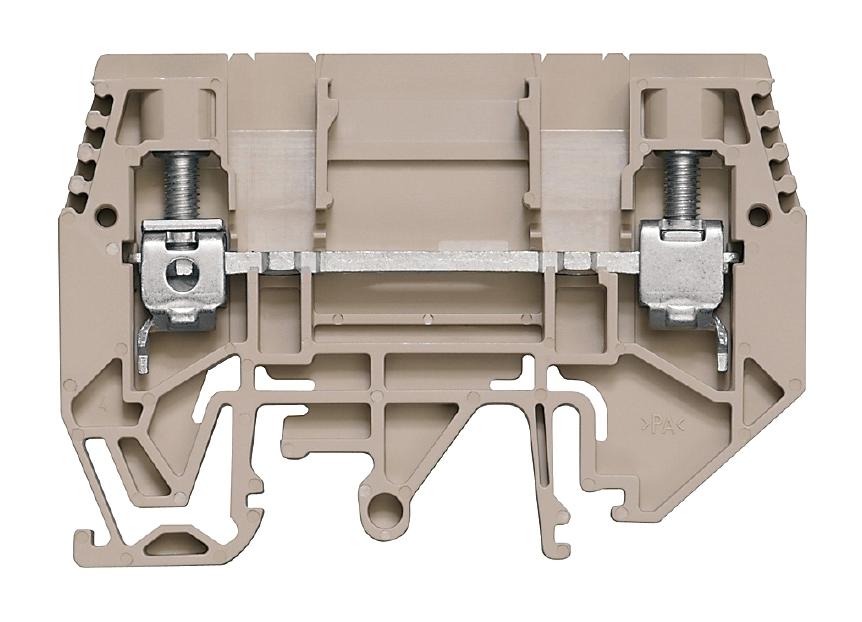

WEIDMULLER 1934830000 Transformer Wiring Terminal Block
The WTD 6/1 EN is a screw connection, end cover plate terminal block designed for safe connection of current and voltage transformers in industrial measurement systems. It features a compact design with a width of 7.9mm and height of 65mm, made from flame-retardant Wemid material rated V-0. Suitable for screwable cross connections, it handles up to 630V and 41A, with connections supporting wire ranges from 20 to 8 AWG. This terminal block ensures reliable performance, CSA and UL rated, ideal for industrial automation and electrical wiring applications.
WEIDMULLER 1934830000 Transformer Wiring Terminal Block Specifications:
- Width: 7.9mm (0.311 inch)
- Height: 65mm (2.559 inch)
- Depth: 47.5mm (1.87 inch)
- Material: Wemid, dark beige, V-0 flammability rated
- Rated Voltage: 630V
- Rated Current: 41A
- Connection type: Screw connection, end cover plate required
- Clamping range: 0.5 mm to 10 mm
- Wire cross section: 20 to 8 AWG
- Tightening torque: 0.8 to 1.6 Nm
- CSA rating: 45A at 300V, with wire sizes 20–8 AWG
- UL rating: Conductor size max 8 AWG, min 20 AWG
- Operating temperature: -50°C to 120°C
- Storage temperature: -25°C to 55°C
Buy the Weidmiiller WTD 6/1 EN – Reliable Transformer Wiring Terminal Block for Industrial Applications
Purchase the Weidmiiller WTD 6/1 EN online now to ensure safe, reliable, and efficient wiring connections for current and voltage transformers. Designed for industrial measurement systems, it features a compact design, high current and voltage ratings, and UL and CSA approvals. Made from flame-retardant Wemid material, it supports wire sizes from 20 to 8 AWG, with easy screw connection for secure contacts. Perfect for automation, electrical panels, and control systems requiring durable and compliant terminal blocks.
Get Weidmiiller WTD 6/1 EN today—built for precise and long-lasting electrical transformer connections in industrial environments.
