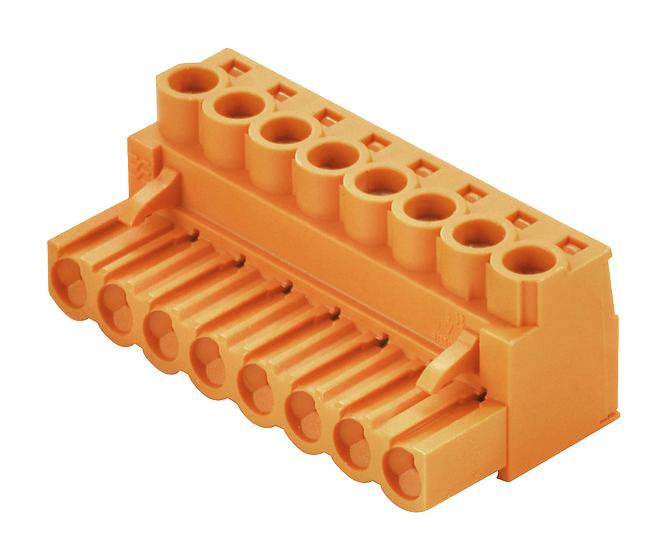

WEIDMULLER 1954490000 field connector
The female plug features a clamping-yoke screw system suitable for connecting wires with a straight outlet direction. It is designed with open clamping yokes, an integrated plus/minus screw for secure connections, and space for labeling and coding. The connector is protected against faulty wire insertion and can be fastened by flange or release latch. Ideal for industrial applications requiring reliable, high-current connections with a 5.00 mm pitch and a rating of up to 23 A at 400 V, suitable for PCB assembly and field wiring.
WEIDMULLER 1954490000 field connector Specifications:
- Type: PCB plug-in connector, female plug, 2 poles
- Pitch: 5.00 mm (0.197 inch)
- Number of poles: 2
- Wire connection method: Clamping yoke connection
- Clamping range: Max 4 mm²
- Rated voltage: 400 V (IEC), 300 V (UL)
- Rated current: 23 A (IEC), 20 A (UL)
- Contact Material: Copper alloy, tinned
- Insulating Material: PBT, color orange (RAL 2000)
- Protection: Safe from finger touch (<5mΩ), touch-safe according to DIN VDE
- Temperature ratings: -40°C to 70°C operating temperature, -25°C to 100°C installation temperature
- Dimensions: Width 10mm, Height 16mm, Depth 20.1mm
- Weight: 3.59 g
- Stripping length: 7 mm
- Tightening torque: 0.4–0.5 Nm
- UL/CSA approval: Rated 300V/20A, wire AWG 26-12
- Compliance: RoHS, IEC, UL
Buy the Weidmueller 1954490000 – Reliable PCB Female Connector for Industrial Applications
Order the Weidmueller female connector online today and ensure secure, high-quality wire connections for your industrial control systems. Featuring a 5.00 mm pitch, 2 poles, and rated for up to 23 A at 400 V, this connector offers excellent durability and safety. Built with a robust clamping-yoke mechanism, it simplifies installation and reduces faulty wiring. Suitable for PCB assembly and field wiring, this connector is ideal for automation, control panels, and manufacturing environments. Purchase now to enhance your electrical connectivity projects with trusted quality and quick delivery.
Buy Weidmueller 1954490000 now and experience unmatched reliability and performance in high-current industrial wiring.
