WEIDMULLER 1226260000 Power PCB Terminal
The PCB terminal is designed for reliable electrical connections up to 76 A and accommodates conductors from 0.50 to 16.0 mm² (IEC) or 26 to 6 AWG (UL). It features a proven clamping yoke connection, a 10.16 mm pitch, and a 90° conductor outlet for convenient wiring. Suitable for PCB mounting with THT soldering, it is rated for 1000 V (IEC) and 300 V (UL), making it ideal for power distribution in industrial settings, ensuring secure, vibration-resistant connections with minimal installation space. Its black insulating cover ensures safety and durability.
WEIDMULLER 1226260000 Power PCB Terminal Specifications:
- Number of Poles: 8
- Pitch: 10.16 mm (0.4 inch)
- Rated Current: 76A IEC / 65A UL
- Rated Voltage: 1000 V IEC / 300 V UL
- Conductor Cross-Section: 0.50 - 16.0 mm² (IEC), AWG 26 - 6 (UL)
- Solder Pin Length: 4.5 mm
- Solder Pin Dimensions: 1.2 x 1.2 mm
- Eyelet Hole Diameter: 1.6 mm
- Solder Eyelet Tolerance: ±0.1 mm
- Clamping Range: 0.14 - 16 mm²
- Operating Temperature: -60°C to 120°C
- Material: Wemid (PA), Contact Material: Copper
- Flammability Rating: UL 94 V-0
- Insulation Resistance: >10^9 Ω
- Certification: CE, UL, CSA
- Dimensions: Width varies with model, typical length 10.16 mm pitch, solder pins 4.5 mm long

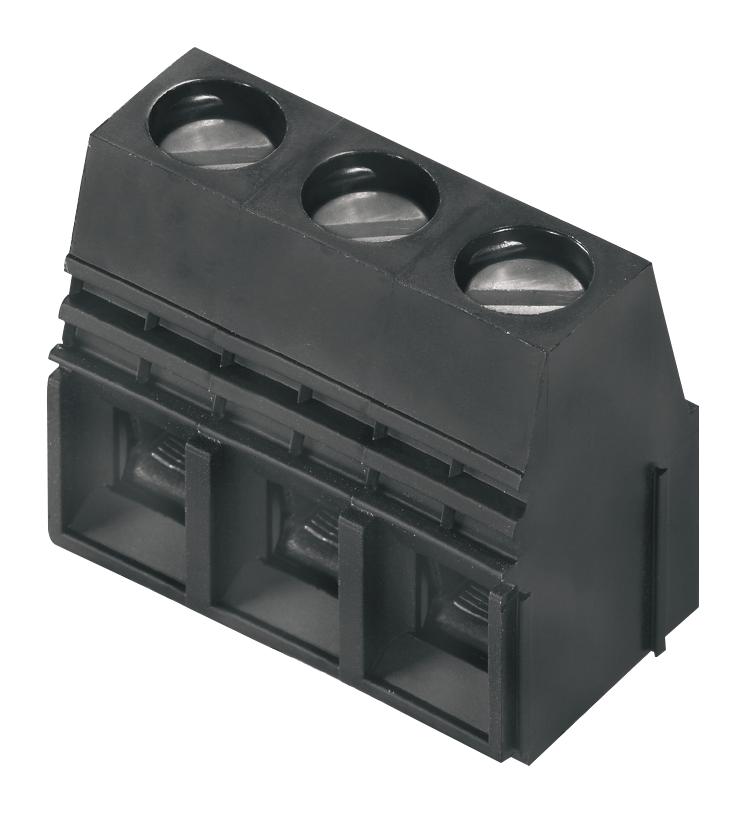

Buy the Buy Weidmueller Power Series LU Part Number 1226260000 Online
Secure your power distribution with the Weidmueller Power PCB terminal designed for 76 A and conductors up to 16 mm². Easy to install with a 10.16 mm pitch and 90° outlet for convenient wiring. Rated for 1000 V IEC and 300 V UL, it features a durable clamping yoke connection that holds conductors firmly and resists vibration. Ideal for industrial applications requiring high current capacity, this terminal combines safety, efficiency, and reliability in a compact form, ensuring excellent electrical performance and long-term durability.
Order your Weidmueller Series LU PCB terminal 1226260000 today and ensure reliable, high-current power connections with proven quality and safety standards.
Frequently Asked Questions
Where can I buy WEIDMULLER 1226260000?
You can click on the BUY or RFQ button to purchase 1226260000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1226260000?
You can download the 1226260000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1226260000?
WEIDMULLER
