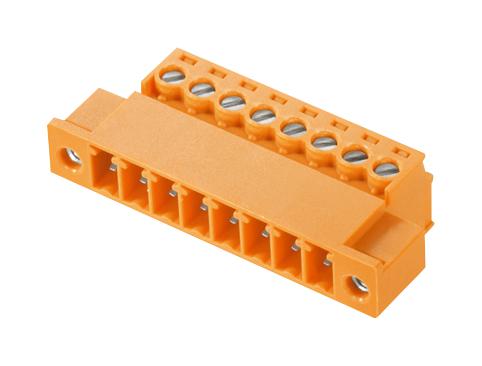

WEIDMULLER 1970920000 Signal Connector
This inverted SCZ pin plug with clamping-yoke screw connection is designed for straight wire connections in 3.81 mm pitch. Suitable for wire-to-wire and PCB mating, it offers space for labeling and coding, multiple flange options, and a no-strain disconnect latch. It features a rated voltage of 320 V, current of 17.5 A, a clamping range of 0.08 to 1.5 mm, and is rated for UL, IEC, and CSA standards. Made with orange PA GF, it withstands temperatures from -60°C to 120°C, ensuring reliable performance in industrial applications.
WEIDMULLER 1970920000 Signal Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of poles: 3
- Rated voltage: IEC 320 V, UL 300 V, CSA 300 V
- Rated current: IEC 17.5 A, UL 10 A, CSA 1 A
- Clamping range: 0.08 mm to 1.5 mm
- Wire cross-section: AWG 28 to AWG 16
- Material: Insulating nylon (PA GF) in orange (RAL 2000)
- Flammability rating: UL 94 V-0
- Temperature range: -60°C to 120°C
- Insulation resistance: 210 MΩ
- Dimensions: 3.69 grams weight, 180° outlet, 7.62 mm conductor outlet length
- Protective class: IP 20
- Screw tightening torque: 0.2 - 0.3 Nm
- Compatible with wire end ferrules and plastic collar ferrules
- Rated for multiple plugging cycles: 25
- Certifications: UL, IEC, CSA
Buy the Weidmueller 1970920000 – Reliable PCB and Wire Connector for Industrial Applications
Purchase the Weidmueller Signal Connector today to ensure reliable, high-quality connections in your industrial automation and wiring projects. Designed for durability, it features a 3.81 mm pitch, a rated voltage of 320 V, and a current of 17.5 A, making it suitable for PCB and wire-to-wire applications. Its clamping range from 0.08 to 1.5 mm accommodates various wire sizes, including AWG 28 to AWG 16, with easy assembly and secure contact. Ideal for industrial environments, it offers labeling and coding options, multiple flange styles, and compliance with IEC, UL, and CSA standards, ensuring safety and performance in demanding settings.
Get Weidmueller 1970920000 today—built for precision, robust connection, and long-lasting durability.
Frequently Asked Questions
Where can I buy WEIDMULLER 1970920000?
You can click on the BUY or RFQ button to purchase 1970920000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1970920000?
You can download the 1970920000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1970920000?
WEIDMULLER
