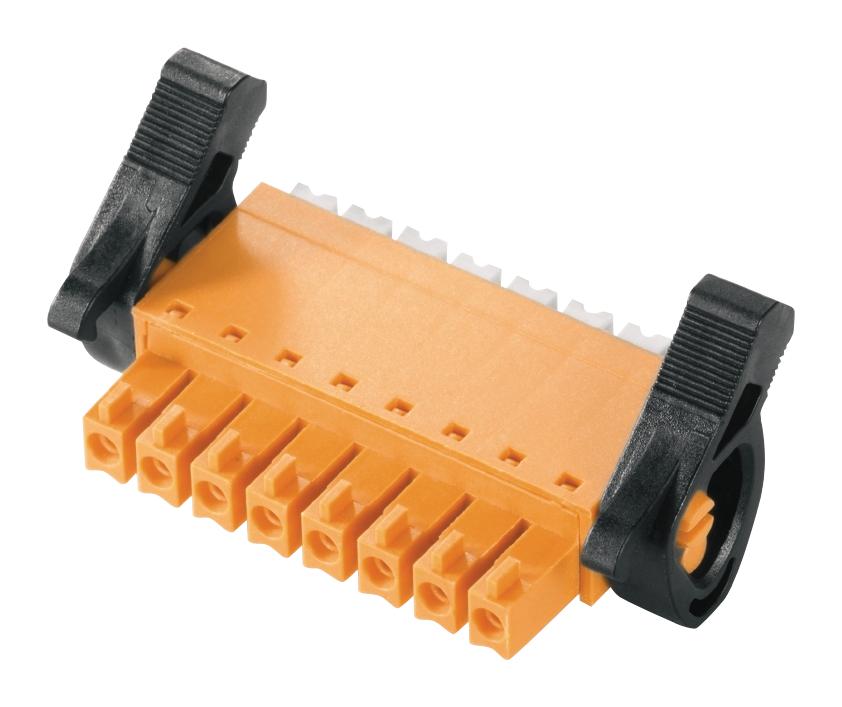

WEIDMULLER 1972250000 PCB Connector
The Weidmueller BCF 3.81/07/180LR SN OR BX is a high-density, PCB plug-in connector designed for reliable wire connections in industrial control systems. Featuring push-in technology with a pitch of 3.81 mm, it offers easy, tool-free wiring with integrated push buttons for opening the clamping unit. Suitable for 7 poles with a maximum cross-section of 1.5 mm², it complies with IEC and UL standards. Its compact design ensures efficient space utilization, making it ideal for automation and control applications requiring durable, secure connections.
WEIDMULLER 1972250000 PCB Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of poles: 7
- Max. conductor cross-section: 1.5 mm²
- Wire range: 0.14-1.5 mm² (AWG 26-16)
- Connection type: Push-in
- Rated voltage: 300V (UL/CSA), 320V (IEC)
- Rated current: 10A (UL/CSA), 17.5A (IEC)
- Poles spacing: 22.86 mm (0.9 inch)
- Insulating material: PA GF (Orange, RAL 2000)
- Flammability rating: UL 94 V-0
- Operating temperature: -60°C to 120°C
- Touch-safe protection: Yes (DIN VDE 57106)
- Ingress protection: IP 20
- Strip length: Approx. 8-10 mm
- Number of insertion cycles: 25
- Certifications: UL, CSA, IEC
Buy the Weidmueller BCF 3.81/07/180LR SN – Reliable PCB Connector for Industrial Applications
Upgrade your electrical assemblies with the Weidmueller BCF 3.81/07/180LR SN connector, designed for industrial control systems. Featuring push-in technology, it ensures fast, secure wiring with a maximum conductor size of 1.5 mm². Its compact form factor and robust insulating material provide space-efficient and durable connections. Certified according to UL, CSA, and IEC standards, this connector offers high reliability, multiple insertion cycles, and optimal safety. Perfect for automation, machinery, and control panel wiring, it is available for online purchase to streamline your projects.
Order your Weidmueller BCF Series 3.81/07/180LR SN industrial connector today and enhance your control panel's wiring reliability with easy, tool-free installation.
