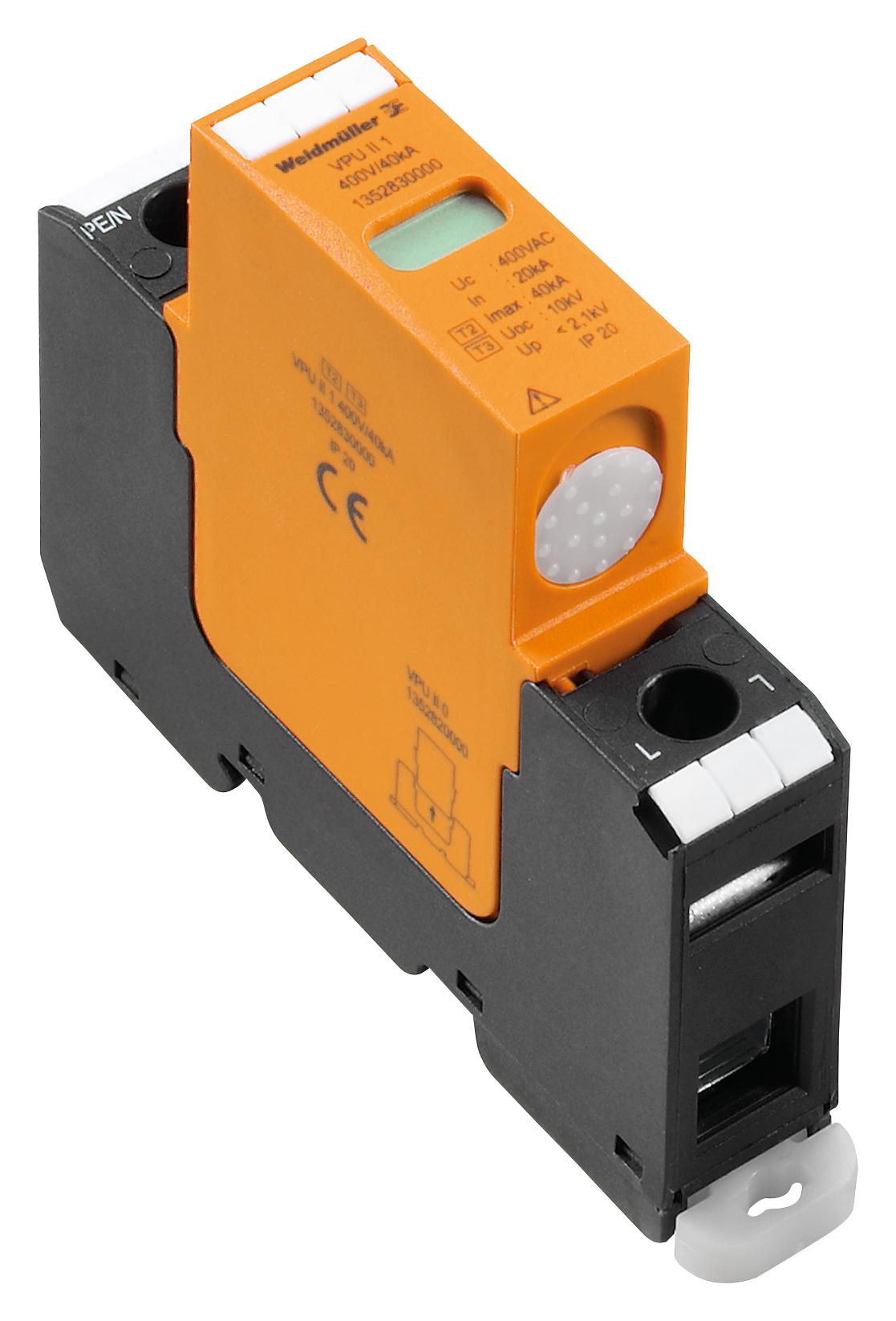

WEIDMULLER 2025780000 Surge Protection Device

WEIDMULLER 2025780000 Surge Protection Device Specifications:

• Delivery Status: This article will no longer be available in the future
• Available Until: 2020-05-01
• Type: VPU II 1 SP 347V
• Order No.: 2025780000
• Version: without telecomm. contact
• GTIN(EAN): 4050118405330
• Quantity: 1pc(s)
• Alternative Product: 2591210000
• Width: 18 mm
• Height: 94 mm
• Depth: 69 mm
• Mounting Dimension - Height: 75 mm
• Width (inches): 0.709 inch
• Height (inches): 3.701 inch
• Depth (inches): 2.717 inch
• Net Weight: 152 g
• Humidity: 5 - 95% rel. humidity
• Operating Temperature, Min: -40 °C
• Storage Temperature, Min: -40 °C
• Storage Temperature: -40 °C...85 °C
• Operating Temperature, Max: 70 °C
• Storage Temperature, Max: 85 °C
• Operating Temperature: -40 °C...70 °C
• Rated Voltage UN: 347 V
• VPR(L/N-PE): 1,800 V
• SCCR: 200 kA
• Category: SPD TYPE 1CA/2CA
• Continuous Voltage UC, Max: 510 V
• Test Voltage (UL 1449): 600 V
• MCOV(L/N-PE): 510 Vac
• In: 20 kA
• Colour: black,orange
• Optical Function Display: green = OK; red = arrester is defective - replace
• Rail: TS 35
• UL 94 Flammability Rating: V-0
• Design: Installation housing; 1TE, Insta IP 20
• Protection Degree: IP20
• Segment: Power distribution
• Pollution Severity: 2
• Surge Voltage Category: III
• Discharge Current Imax(8/20µs) wire-PE: 40 kA
• Follow-on Current Extinguishing Capability Ifi: Not available due for technical reasons
• Low Voltage Network: TN-S->L-(PE)N, N-PE(U0≤ 230 V)
• Protection Level Upat IN(L/N-PE): ≤ 2.1 kV
• Requirements Class, acc. to EN 61643-11: T2
• Short-circuit Current Rating ISCCR: 25 kA
• Voltage Type: AC
• Discharge Current In(8/20µs) wire-PE: 20 kA
• Fuse: 125 A gL > (if back up fuse > 125 A)
• Max. Continuous Voltage, Uc (AC): 510 V
• Requirements Category acc. to IEC 61643-11: Type II
• Response Time: ≤ 25 ns
• Signalling Contact: No
• Tightening Torque, Min: 2 Nm
• Wire Connection Cross Section AWG, Min: AWG 14
• Wire Cross-section, Solid, Min: 4 mm²
• Wire Connection Cross-section, Finely Stranded, Min: 2.5 mm²
• Conductor Cross-section, Flexible, AEH (DIN 46228-1), Min: 2.5 mm²
• Connection Cross-section, Stranded, Min: 4 mm²
• Stripping Length, Rated Connection: 15 mm
• Tightening Torque, Max: 3 Nm
• Wire Connection Cross Section AWG, Max: AWG 0
• Wire Cross-section, Solid, Max: 16 mm²
• Wire Connection Cross Section, Finely Stranded, Max: 25 mm²
• Conductor Cross-section, Flexible, AEH (DIN 46228-1), Max: 25 mm²
• Connection Cross-section, Stranded, Max: 50 mm²
