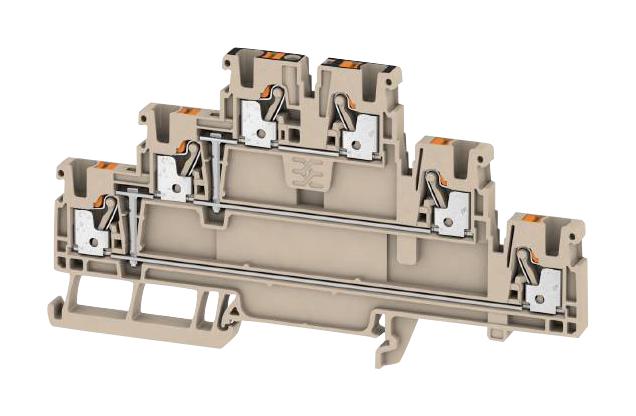

WEIDMULLER 2428540000 Feed-through Terminal Block
The Weidmuller A3T 2.5 VL is a feed-through terminal block designed for efficient and reliable electrical connections in industrial applications. Featuring innovative PUSH IN technology, it minimizes wiring time while ensuring high conductor pull-out forces and simple handling for all conductor types. This terminal block is ideal for applications requiring robust and secure connections, such as power distribution, control systems, and automation equipment. Its compact design and versatile mounting options make it a suitable choice for a wide range of industrial environments.
WEIDMULLER 2428540000 Feed-through Terminal Block Specifications:
- Width: 5.1 mm
- Height: 116 mm
- Depth: 64.5 mm
- Depth_including_DIN_rail: 65 mm
- Width_inches: 0.201 inch
- Height_inches: 4.567 inch
- Depth_inches: 2.539 inch
- Net_weight: 21.72 g
- Continuous_operating_temp_min: -60 °C
- Continuous_operating_temp_max: 130 °C
- Material: Wemid
- Colour_of_operational_elements: Orange
- Colour: Dark Beige
- UL_94_flammability_rating: V-0
- End_coverplate_required: Yes
- Number_of_levels: 3
- Levels_cross_connected_internally: Yes
- Mountingrail: TS 35
- PE_function: No
- Number_of_potentials: 1
- No_of_clamping_points_per_level: 2
- PE_connection: No
- N_function: No
- PEN_function: No
- Rated_cross_section: 2.5 mm²
- Rated_current: 24 A
- Rated_voltage: 800 V
- Standards: DIN EN 60947-7-1
- Rated_impulse_withstand_voltage: 8 kV
- Surge_voltage_category: III
- Current_at_maximum_wires: 24 A
- Volume_resistance: 3.99 mΩ
- Pollution_severity: 3
- Certificate_No_cURus: E60693
- Conductor_size_Factory_wiring_min_cURus: 28 AWG
- Conductor_size_Field_wiring_min_cURus: 28 AWG
- Current_size_C_cURus: 20 A
- Voltage_size_B_cURus: 300 V
- Voltage_size_D_cURus: 600 V
- Conductor_size_Factory_wiring_max_cURus: 12 AWG
- Conductor_size_Field_wiring_max_cURus: 12 AWG
- Current_size_B_cURus: 20 A
- Current_size_D_cURus: 5 A
- Voltage_size_C_cURus: 300 V
- ETIM_6.0: EC000897
- eClass_9.1: 27-14-11-20
- eClass_6.2: 27-14-11-20
- Blade_size: 0.6 x 3.5 mm
- Clamping_range_min: 0.14 mm²
- Connection_cross_section_stranded_min: 0.5 mm²
- Gauge_to_IEC_60947_1: A3
- Strippinglength: 10 mm
- Twin_wire_end_ferrules_min: 0.5 mm²
- Wire_connection_cross_section_AWG_max: AWG 12
- Wire_connection_cross_section_finely_stranded_max: 2.5 mm²
- Wire_connection_cross_section_solid_core_max: 2.5 mm²
- Clampingrange_max: 2.5 mm²
- Connection_cross_section_stranded_max: 2.5 mm²
- Connection_direction: top
- Number_of_connections: 6
- Twin_wire_end_ferrules_max: 0.75 mm²
- Type_of_connection: PUSH IN
- Wire_connection_cross_section_AWG_min: AWG 28
- Wire_connection_cross_section_finely_stranded_with_wire_end_ferrules_DIN_46228_1_max: 2.5 mm²
- Wire_connection_cross_section_finely_stranded_with_wire_end_ferrules_DIN_46228_4_max: 2.5 mm²
- Wire_connection_cross_section_finely_stranded_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_min: 0.5 mm²
