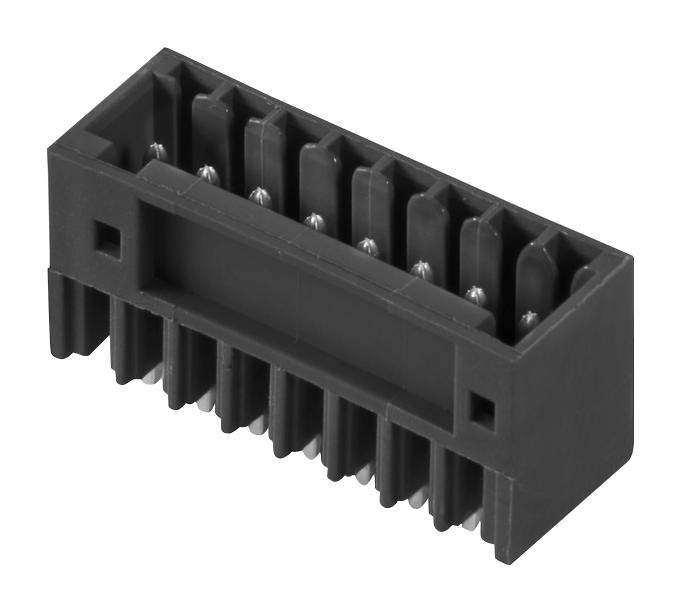

WEIDMULLER 2439960000 PCB Header Connector
This is a male header connector designed for wave soldering with a 2.50 mm pitch, suitable for PCB installation. It features 7 poles, a straight (180°) plugging direction, and a closed housing variant. Made from black PA 66 with tin-plated copper alloy contacts, it supports IEC rated current of 6A and voltage of 320V. It complies with UL and CSA standards, rated for operating temperatures up to 105°C. The connector is packaged in a box for easy handling and is ideal for industrial automation, electronic assembly, and PCB interconnections.
WEIDMULLER 2439960000 PCB Header Connector Specifications:
- Pitch: 2.50 mm (0.984 inch)
- No. of poles: 7
- Solder pin length: 3.2 mm with tolerance +0.17 to -0.1 mm
- Pin dimensions: 0.8×0.8 mm
- Eyelet hole diameter: 1.3 mm
- Material: PA 66, black, UL 94 V0 rated
- Contact material: Copper alloy, tinned, matt finish
- Operating temperature: -40°C to +105°C
- Rated current: 6A
- Rated voltage: IEC 320V, UL 150V, CSA 150V
- Rated impulse voltage: 2.5 kV
- Number of solder pins: 7
- Height: 13.3 mm (0.524 inch)
- Width: 19.4 mm (0.764 inch)
- Depth: 8.1 mm (0.319 inch)
- Weight: 29 grams
- Packaging: Box, part number 2439960000
- Standards: IEC 61984, UL 1059, CSA
- Touch-safe protection: IP00, 25 plugging cycles
Buy the Weidmueller Series SL 2.50 PCB Connector: 2439960000
Order the Weidmueller Series SL 2.50 male header connector today to streamline your PCB assembly with high-quality contacts and reliable soldering. Designed for wave soldering with a 2.50 mm pitch, it offers excellent electrical performance with 6A current and 320V IEC rated voltage. Packaged in a convenient box, this connector ensures quick handling and installation. Its robust build, compliant standards, and precise pin dimensions make it ideal for industrial electronics, automation, and manufacturing applications. Secure your supply online now for consistent, reliable connections.
Get Weidmueller Series SL 2.50 PCB connector today—built for precise PCB wiring and durable connections.
