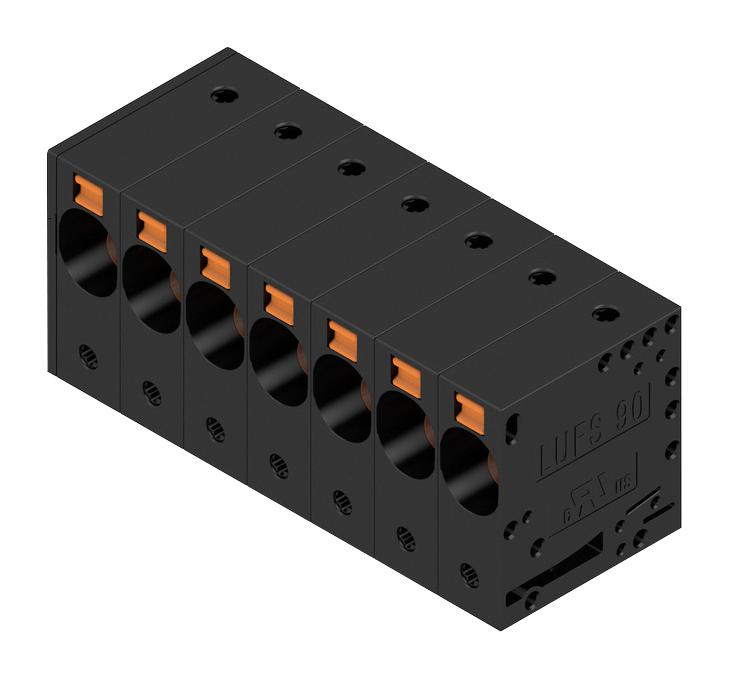

WEIDMULLER 2500500000 PCB Terminal
The OMNIMATE Power series LUFS 10.00/07/90V 5.0SN BK BX is a high-performance PCB terminal designed with a PUSH IN connection system for conductor cross-sections up to 16 mm². It offers fast, tool-free connection, secure contact points with the 'Connection Safety Concept,' and an integrated test point for PS 2.0 test plugs. Its robust design with increased derating reserves utilizes Weidmüller insulating material, supporting reliable electrical connections in industrial applications. The 7-pole terminal features a compact size, easy mounting on PCBs, and supports rated voltages up to 1000V and currents up to 76A.
WEIDMULLER 2500500000 PCB Terminal Specifications:
- Width: 71.8 mm (2.827 inches)
- Height: 35 mm (1.378 inches)
- Depth: 28.55 mm (1.124 inches)
- Net weight: 67.29 g
- Number of poles: 7
- Solder pin length: 5 mm
- Solder pin dimensions: d=1.2 mm, octagonal
- Solder eyelet hole diameter: 1.6 mm (+0.1 mm tolerance)
- Clampable conductor cross-section: 0.5 mm² to 16 mm²
- Wire connection method: PUSH IN without actuator
- Rated voltage: IEC 1000 V, UL 600 V, CSA 600 V
- Rated current: IEC 76A (Tu=40°C), UL/CSA 53A
- Connection method: THT solder connection
- Insulating material: Wemid (PA), black
- Flammability rating: UL 94 V0
- Insulation strength: 210°C
- Operating temperature: -40°C to 120°C
- Storage temperature: -40°C to 70°C
- Clamping range: 0.5 mm² to 16 mm²
- Max. clamping range: 16 mm²
- Conductor types: solid, stranded, flexible, ferrules
- Material: Copper base, ECu contact material
