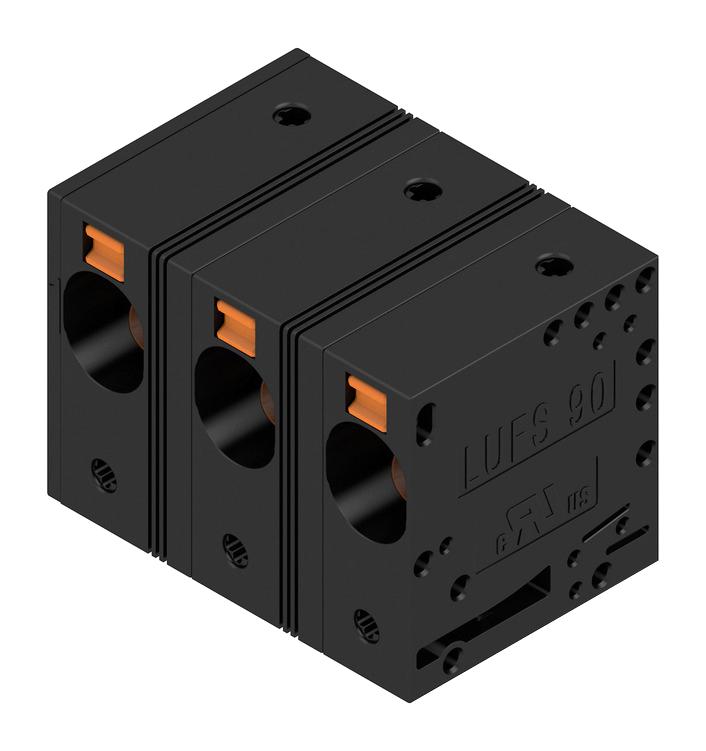

WEIDMULLER 2500570000 Power PCB Terminal
The LUFS 15.00/03/90V 5.0SN BK BX is a high-current PCB terminal block designed for power electronics applications such as solar inverters, frequency converters, and power supplies. It features a 15mm pitch, 3 poles at 90°, push-in connection without actuator, and a max clamping range of 16 mm. Made with durable black Wemid (PA) material, it supports rated voltages up to 1000 V and currents of 76A. Its compact dimensions and robust construction make it ideal for demanding power management tasks.
WEIDMULLER 2500570000 Power PCB Terminal Specifications:
- Pitch: 15 mm (0.591 inch)
- Number of Poles: 3
- Poles at: 90°
- Solder pin length: 5 mm
- Pin dimensions: d= 1.2 mm, octagonal
- Clamping range: min 0.5 mm, max 16 mm
- Rated voltage: 1000 V (IEC), 600 V (UL)
- Rated current: 76 A (IEC), 53 A (UL)
- Wire cross-section: AWG 18 to AWG 4
- Material: Wemid (PA), black with orange operational elements
- Operating temperature: -40°C to +120°C
- Storage temperature: -40°C to +70°C
- Dimensions: Width 41.8 mm, Height 35 mm, Depth 28.55 mm
- Weight: 35.239 g
- UL and IEC approvals compatible
- Touch-safe protection IP20 (plugged), IP10 (unplugged)
Buy the Buy Weidmuller Power PCB Terminal Part Number 2500570000 Online
Purchase the Weidmuller Power PCB Terminal in the 2500570000 series online now. Designed for high-current power electronics, this 3-pole terminal features a 15 mm pitch, push-in connection, rated up to 1000 V and 76 A. Made from durable Wemid (PA) in black, it offers excellent vibration resistance, temperature tolerance from -40°C to +120°C, and a clamping range of 0.5 to 16 mm. Its compact, robust design is perfect for solar inverters, servo controllers, and power supplies, ensuring reliable electrical connections.
Order your Weidmuller Series LUFS 15.00/03/90V 5.0SN BK BX today and secure reliable, high-current power connections for your demanding projects.
