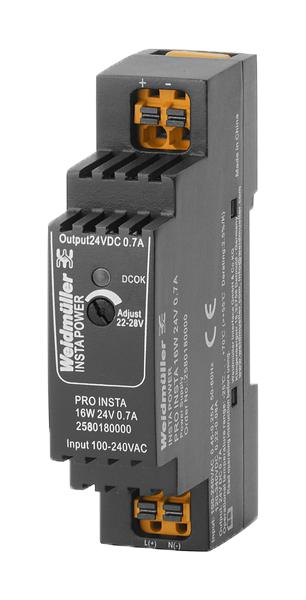

WEIDMULLER 2580180000 Power Supply Module
The PRO INSTA 16W 24V 0.7A power supply by Weidmueller offers a compact, efficient, and reliable solution for industrial and automation applications. It features a wide input voltage range of 85-264 V AC and 95-370 V DC, with an output of 24V DC at 0.7A, suitable for low-power telecommunication and automation systems. The supply operates reliably from -25°C to +70°C, with protections against reverse voltages, and has an efficiency of 82.5%. Its DIN rail mounting, low power loss, and robust insulation make it ideal for industrial environments.
WEIDMULLER 2580180000 Power Supply Module Specifications:
- Dimensions: Width 22.5mm, Height 90.5mm, Depth 60mm
- Weight: 829g
- Input Voltage Range: 85-264 V AC, 95-370 V DC
- Input Current: 0.25 A@ 230V AC, 0.45 A@ 100V AC
- Output Voltage: 24V DC (adjustable 22-28V)
- Output Current: 0.7A continuous at 55°C
- Ripple: <50 mVss
- Efficiency: 82.5%
- Temperature Range: -25°C to +70°C operating, -40°C to +85°C storage
- Protection Degree: IP20
- MTBF: >750,000 hours
- Mounting: Horizontal on DIN rail TS 35, top and bottom
- Insulation Voltage: Input/earth 3.5 kV, output/earth 0.5 kV
- Max Power Loss: 3.6 W at nominal load
- Protection Against Reverse Voltage: 30-35 VDC
- Certifications: TUV Approved, RoHS Compliant
- Connection System: PUSH IN terminal for input and output
- Inrush Current: Max 40A
Buy the Weidmueller PRO INSTA 16W 24V 0.7A – Reliable Power Supply for Industrial Applications
Secure your industrial automation setup with the Weidmueller PRO INSTA 16W 24V 0.7A power supply. Designed for reliable operation in demanding environments, it features a broad input voltage range, efficient power conversion, and robust construction. Its DIN rail mounting allows easy installation, while the low ripple ensures stable operation for sensitive electronics. With comprehensive protections, long MTBF, and compliance with international standards, this power supply guarantees consistent power delivery for signal and telecommunications systems, automation equipment, and industrial standards.
Buy Weidmueller PRO INSTA 16W 24V 0.7A now and experience unmatched reliability and high efficiency for your automation projects.
