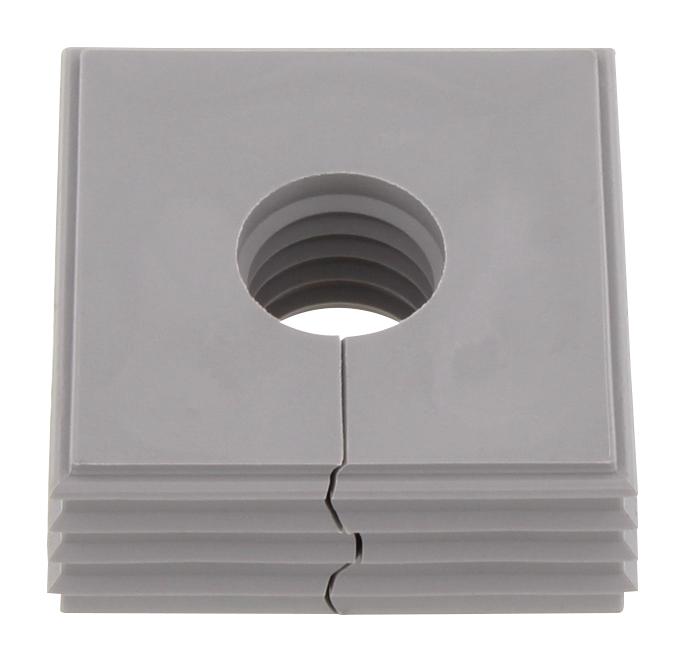

WEIDMULLER 2584500000 Cable Grommet
This conical grommet features an easy-to-install design, sealing gaps reliably while providing strain relief per DIN EN 62444 standards. Its wave-cut, slotted structure suits preassembled cables, ensuring IP66 protection. Made from halogen-free, silicone-free grey thermoplastic elastomer (TPE), it withstands temperatures from –40°C to +90°C. The large clamping hole accommodates cables with diameters of 15mm to 16mm. Its UL94 V0 flammability rating ensures safety in various environments. Perfect for secure cable management with high chemical resistance and durability in demanding industrial applications.
WEIDMULLER 2584500000 Cable Grommet Specifications:
- Material: Halogen-free, silicone-free grey thermoplastic elastomer (TPE)
- Protection Level: IP66 according to DIN EN 60529
- Temperature Range: –40°C to +90°C
- Clamping Range: 15mm to 16mm cable diameter
- Flammability Rating: UL94 V0
- Design: Conical sealing element with wave-cut, non-split for preassembled cables
- Chemical Resistance: High resistance suitable for industrial environments
- Mounting: Pressed into frame inlay, ensuring reliable sealing and strain relief
Buy the Weidmuller Series Grommet: 2584500000
Secure your control panels and enclosures with the Weidmuller cable grommet featuring easy installation and reliable IP66 sealing. Crafted from halogen-free, grey TPE, it offers excellent durability, chemical resistance, and temperature stability from –40°C to +90°C. Designed to fit cables with diameters of 15mm to 16mm, its wave-cut, conical shape ensures a snug fit for preassembled cables, providing strain relief and safety compliance. Purchase online today and upgrade your cable management system with a proven solution for industrial environments.
Order your Weidmuller Series Grommet 2584500000 today and ensure secure, reliable cable sealing with high temperature resistance and easy installation.
Frequently Asked Questions
Where can I buy WEIDMULLER 2584500000?
You can click on the BUY or RFQ button to purchase 2584500000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2584500000?
You can download the 2584500000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2584500000?
WEIDMULLER
