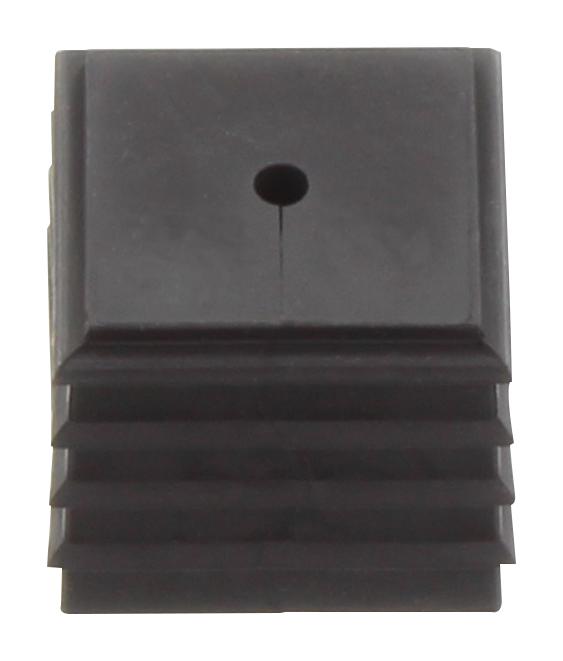

WEIDMULLER 2584750000 Cable Grommet

This conical grommet is designed for easy installation, sealing gaps, and providing strain relief in accordance with DIN EN 62444 standards. It features a slotted, wave-cut design suitable for preassembled cables and can be simply pressed into place from inside the frame inlay. The grommet, combined with the frame inlay, achieves an IP66 protection rating. Made from black TPE, it is halogen-free, silicone-free, UV stabilized, and flame-retardant (UL94 HB). It supports a small 1-hole configuration with clamping capacity of 1.75 mm to 2.25 mm and operates within a temperature range of –40°C to +120°C (static).

View 2584750000Datasheet [pdf]

Buy the Weidmuller CABTITECSE 2584750000 – Reliable Cable Sealing Grommet for Industrial Applications

Secure your control cabinets and machinery with the Weidmuller Cable Grommet designed for reliable sealing, strain relief, and easy installation. Made from flame-retardant, UV stabilized black TPE, this high-quality cone-shaped grommet supports pre-assembled cables with a clamping range of 1.75 mm to 2.25 mm. Its wave-cut, slotted design provides IP66 protection while conforming to DIN EN 62444 standards. Perfect for harsh environments, it operates within –40°C to +120°C, offering excellent chemical resistance and durability, ensuring your electrical installations stay sealed and protected.

Order your Weidmuller CABTITECSE 2584750000 today and ensure your cable management with proven sealing and strain relief in demanding environments.
