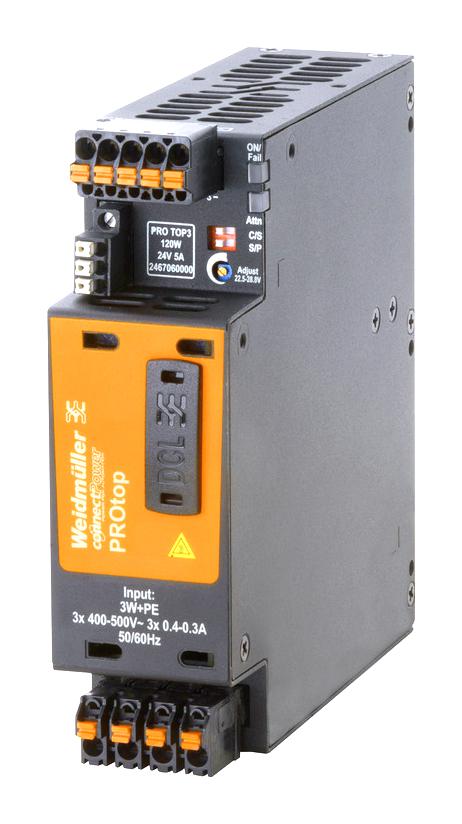

WEIDMULLER 2467060000 DCDC 120W 24V 5A Converter
The Weidmuller ConnectPower PRO DCDC 120W 24V 5A converter is a compact and reliable solution for providing systems with optimal failure protection and stable power. It compensates for voltage fluctuations, regenerates the output voltage for long cable runs, and establishes floating supply systems through galvanic isolation. With above-average performance data, this converter is ideal for industrial applications requiring high availability and reliable power delivery. It features overload protection, a wide input voltage range, and a robust metal housing for durability.
WEIDMULLER 2467060000 DCDC 120W 24V 5A Converter Specifications:
- Type: PRO DCDC 120W 24V 5A
- Order No.: 2001800000
- Version: DC/DC converter, 24 V
- GTIN(EAN): 4050118383836
- Quantity: 1 pc(s).
- Input Voltage Range: 14…32 V (during operation), 18…32 V (commissioning)
- Rated Input Voltage: 24 V DC
- Output Voltage: 24 V DC ± 1 %
- Output Power: 120 W
- Output Current: 5 A
- Continuous Output Current @ 60 °C: 5 A
- Continuous Output Current @ 45°C: 6 A
- Continuous Output Current @ 70°C: 3,75 A
- Efficiency: typ. 92 %
- Operating Temperature: -25 °C...70 °C
- Storage Temperature: -40 °C...85 °C
- Humidity: 5...95 %,no condensation
- MTBF: 1,250,000 h
- Housing Version: Metal, corrosion resistant
- Protection: Overtemperature, Short-circuit, Inverse voltage
- AC Failure Bridging Time: > 10 ms @ 24 V DC
- Current Limiting: 150% Iout
- Degree of Efficiency: typ. 92 %
- Pollution Severity: 2
