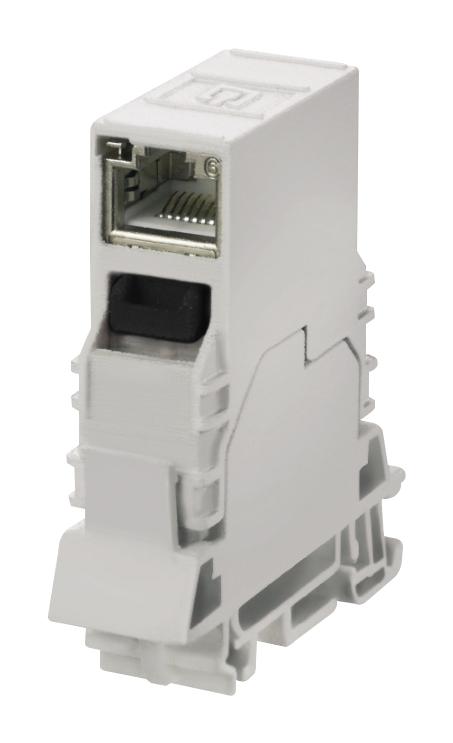

WEIDMULLER 8946920000 Ethernet Junction Module
The industrial Ethernet RJ45 junction module is designed for mounting rail installation, supporting IEC 60603-7-51 standards. It features a shielded Cat.6/Class E connection with a protective IP20 degree. Made from durable materials including spring steel and nickel coating, it offers reliable contact resistance below 20mΩ, with 750 plugging cycles, and supports PoE/PoE+ standards. Operating temperature ranges from -40°C to 70°C, ensuring stable performance in industrial environments. The device is RoHS compliant, with high vibration and shock resistance for demanding applications.
WEIDMULLER 8946920000 Ethernet Junction Module Specifications:
- Connection: 2 RJ45 ports
- Material: Spring steel (contacts), Ni + Au surface
- Protection Degree: IP20
- Size: Standard mounting rail compatible
- Temperature Range: -40°C to 70°C
- Vibration Resistance: IEC 60512-4, 50 ms² sinusoidal
- Shock Resistance: IEC 60512-4, 50 ms²
- Contact Resistance: <20 mΩ
- Current Capacity: 1A at 50°C
- Dielectric Strength: 1000 V DC contact/contact, 1500 V DC contact/shield
- Plugging Cycles: 750
- RoHS Conform: Yes
- Standards: IEC 60603-7-51
- Humidity: 0% to 93% relative humidity
- Net Weight: 52.19 g
Buy the Weidmueller Series Industrial Ethernet RJ45: 8946920000
Enhance your industrial network with the Weidmueller Ethernet Junction Module designed for mounting rails, supporting IEC 60603-7-51 standards. Featuring shielded Cat.6 connections, it ensures reliable data transmission and high vibration resistance. The IP20 protected device is RoHS compliant and supports PoE/PoE+ standards, making it ideal for industrial automation environments. Its durable construction with Ni + Au contacts offers low contact resistance below 20mΩ, withstanding up to 750 plugging cycles. Easy to install and built for demanding conditions, this module guarantees stable and secure network performance.
Buy Weidmueller 8946920000 now and experience unmatched reliability and performance in industrial Ethernet connections.
