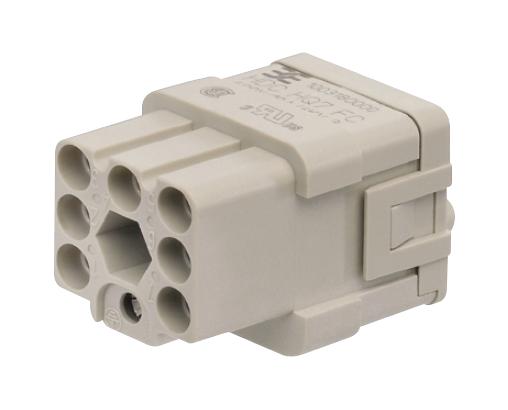

Weidmuller HDCHQ7FC Industrial Connector
The Weidmueller HDC HO.7 FC is a compact, female insertion connector designed for reliable electrical connections in industrial automation. It features a 7-pole crimp connection with a rated current of 10 A and a voltage rating of 400 V. The connector is made of glass-fiber reinforced PC, offering environmental resistance and durability. It supports up to 2500 mating cycles with a silver passivated surface finish. Its dimensions are 21 mm in length and width, with a height of 40.2 mm, making it suitable for various industrial control and automation applications, ensuring secure and efficient wiring connections.
Weidmuller HDCHQ7FC Industrial Connector Specifications:
- Number of poles: 7 (+PE)
- Rated current: 10 A
- Rated voltage: 400 V
- Nominal voltage according to UL/CSA: 600 V AC/DC
- Dimensions: Length 21 mm, Width 21 mm, Height 40.2 mm
- Material: PC glass-fiber reinforced, copper alloy contacts
- Insulation resistance: 10^9 Ω
- Surface finish: Silver passivated, gold plated contacts
- Connection type: Crimp connection with screw terminal for PE wire
- Wire cross-section: Max 2.5 mm², AWG 14, Min 0.14 mm², AWG 26
- Temperature rating: -40°C to 125°C
- Number of mating cycles: 2500
- Pollution severity: 3
- Volume resistance: <4 mΩ
Buy the Weidmueller HDC – Reliable Industrial Connector for Automation Applications
Purchase the Weidmueller HDC HO.7 FC connector online today to benefit from its durable design and reliable crimp connection, ideal for industrial automation. Its robust features include a 7-pole configuration, rated at 10 A and 400 V, with a silver passivated surface finish for excellent electrical conductivity. The connector’s compact dimensions ensure easy installation in control panels and machinery, supporting up to 2500 mating cycles. Get this high-quality connector now for secure, long-lasting connections in demanding industrial environments, and enhance your infrastructure’s reliability and safety.
Buy Weidmueller HDC HO.7 FC now and ensure reliable, secure connections in your industrial automation projects.
Frequently Asked Questions
Where can I buy Weidmuller HDCHQ7FC?
You can click on the BUY or RFQ button to purchase HDCHQ7FC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHQ7FC?
You can download the HDCHQ7FC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHQ7FC?
Weidmuller
