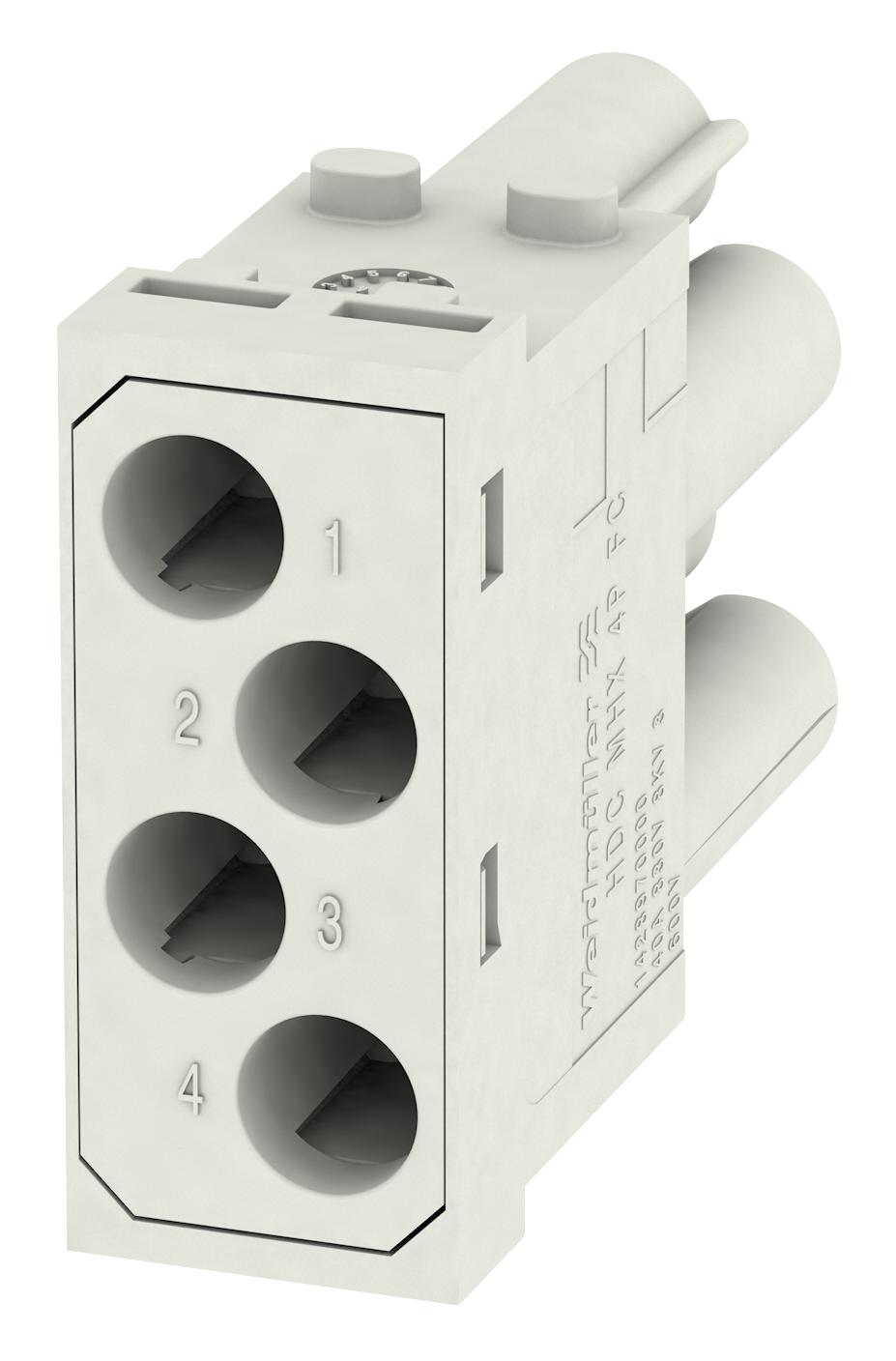

Weidmuller HDCMHX4PFC ModuPlug Connector
The HDC MHX 4P FC is a modular, flexible connector designed for space-efficient wiring solutions with four individual plug modules. Made from polycarbonate with glass fiber reinforcement, it withstands temperatures from 40°C to 125°C and offers 500 plugging cycles. Rated at 40A and 830V, it features screw and crimp connection options for conductor sizes from 1.5 mm² to 6 mm². Compliant with UL/CSA standards, it provides reliable insulation resistance and surge voltage category UL levels, ideal for industrial automation and power distribution applications.
Weidmuller HDCMHX4PFC ModuPlug Connector Specifications:
- Material: Polycarbonate with glass fiber reinforcement
- Number of Poles: 4
- Rated Current: 40A
- Rated Voltage: 830V (DIN EN 61984), 600V (UL/CSA)
- Surge Voltage Category: UL level
- Temperature Range: 40°C to 125°C
- Connection Types: Screw and Crimp
- Conductor Cross-Section: Min. 1.5 mm², Max. 6 mm², AWG 16-10
- Stripping Length: 8mm
- Flammability Rating: UL 94 V0
- Insulation Resistance: 1070 MΩ
- Number of Plugging Cycles: 500
- Pollution Severity: 3
- Approvals: UL, CSA, iE
Buy the Weidmueller Series ModuPlug: HDC MHX 4P FC
Enhance your industrial wiring setup with the reliable and flexible ModuPlug connector designed for space-saving applications. Featuring four poles, rated at 40A and 830V, this connector offers durable polycarbonate insulation, screw and crimp connection options, and withstands temperatures up to 125°C. Its compact modular design reduces space requirements, making installation easier and more efficient. Suitable for automation, electricity distribution, and control systems, the ModuPlug ensures safety, durability, and excellent electrical performance for demanding industrial environments.
Order your Weidmueller Series ModuPlug HDC MHX 4P FC today and ensure space-efficient, reliable industrial wiring for your project.
Frequently Asked Questions
Where can I buy Weidmuller HDCMHX4PFC?
You can click on the BUY or RFQ button to purchase HDCMHX4PFC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCMHX4PFC?
You can download the HDCMHX4PFC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCMHX4PFC?
Weidmuller
