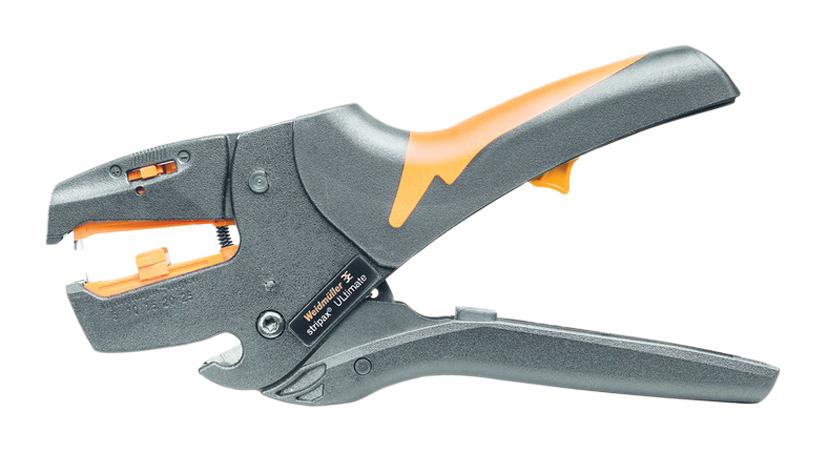

WEIDMULLER 1468880000 Stripping and Cutting Tool
The Weidmuller STRIPAX ULTIMATE is a versatile stripping and cutting tool engineered for efficient wire preparation. It's designed for flexible and solid conductors with halogen-free insulation, accommodating conductor cross-sections from 0.25 mm² to 6 mm² (AWG 24). Key features include automatic self-adjustment, adjustable stripping length up to 25 mm, and a mechanism to prevent conductor fanning. This tool is ideal for mechanical and plant engineering, railway and rail traffic, wind energy, robot technology, explosion protection, and marine applications. Its ergonomic design and long service life contribute to enhanced productivity and reliability.
WEIDMULLER 1468880000 Stripping and Cutting Tool Specifications:
- Type: Stripping and cutting tool
- Order No.: 1468880000
- Version: Flexible and solid conductors with halogen-free insulation
- Conductor cross-section,max.: 6 mm²
- Conductor cross-section, min. AWG: AWG 24
- Conductor cross-section,min.: 0.25 mm²
- Stripping length, max.: 25 mm
- Width: 190 mm
- Height: 99 mm
- Depth: 22 mm
- Net weight: 221.4 g
- ETIM 3.0: EC000163
- ETIM 5.0: EC000163
- eClass 6.2: 21-04-90-90
- eClass 8.1: 21-04-37-06
- eClass 9.1: 21-04-37-06
- ETIM 4.0: EC000163
- ETIM 6.0: EC002109
- eClass 7.1: 21-04-37-06
- eClass 9.0: 21-04-38-90
Buy the 1468880000 WEIDMULLER Stripping and Cutting Tool | myMectronic
Purchase the Weidmuller STRIPAX ULTIMATE stripping tool securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 1468880000?
You can click on the BUY or RFQ button to purchase 1468880000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1468880000?
You can download the 1468880000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1468880000?
WEIDMULLER
