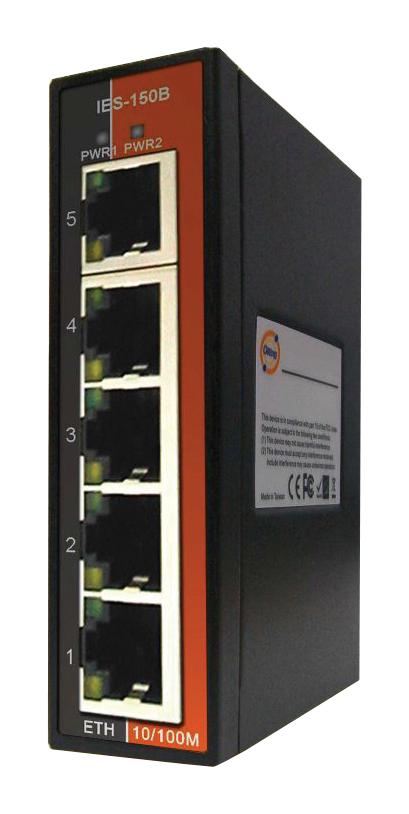

WEIDMULLER IES150B Industrial Ethernet Switch
The IES-150B is a rugged, unmanaged industrial Ethernet switch designed for harsh environments with a compact 5-port mini size. It features five 10/100Base-TX RJ45 ports supporting auto MDI/MDIX, flow control, and store-and-forward transmission. It operates from -40°C to 70°C, with a durable IP-30 housing suitable for DIN-Rail or wall mounting. Equipped with link/act and duplex/collision indicators, it consumes just 3W. Ideal for connecting Ethernet devices such as IP cameras, file servers, and industrial networks in demanding conditions.
WEIDMULLER IES150B Industrial Ethernet Switch Specifications:
- 5x10/100Base-T(X) RJ45 ports supporting auto MDI/MDIX
- Ethernet Standards: IEEE 802.3, IEEE 802.3u
- Processing: 2048 MAC addresses
- Power Indicator: Green link/act, Amber duplex/collision
- Input Power: 48V DC power input
- Power Consumption: 3 Watts (typical)
- Reverse Polarity Protection: Present
- Enclosure: IP-30 hardened plastic case
- Dimensions: 26.1 mm (W) x 70 mm (D) x 95 mm (H)
- Weight: 25g
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 5% to 95% non-condensing
- Certifications: FCC Part 15, CISPR EN55022 class A, IEC 61000-4 series, EN 60950-1 safety
- Vibration & Shock resistance: IEC standards
- Mounting: DIN-Rail or wall mount options
Buy the Buy Industrial Switches Unmanaged Ethernet Switch Part Number IES150B Online
Enhance your industrial network with the IES-150B unmanaged Ethernet switch, featuring five 10/100Base-TX ports supporting auto MDI/MDIX, flow control, and store-and-forward technology. Its compact design, IP-30 housing, and wide operating temperature range from -40°C to 70°C make it ideal for demanding environments. Easy DIN-Rail or wall mounting options facilitate flexible installation. Low power consumption and rugged durability ensure reliable connectivity for Ethernet devices like IP cameras, file servers, and industrial equipment in factories or outdoor setups.
Buy Industrial Switches IES-150B now and experience rugged reliability and seamless Ethernet connectivity in harsh environments.
Frequently Asked Questions
Where can I buy WEIDMULLER IES150B?
You can click on the BUY or RFQ button to purchase IES150B from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part IES150B?
You can download the IES150B datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of IES150B?
WEIDMULLER
