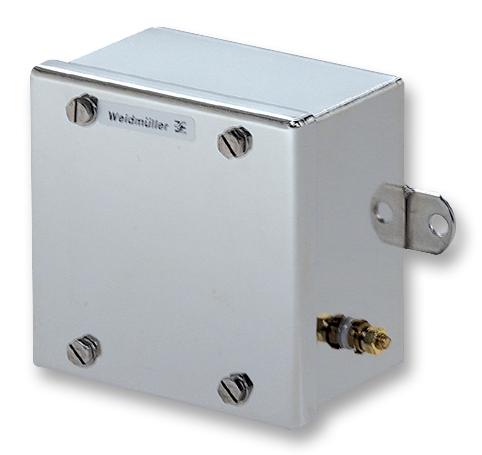

Weidmuller KLIPPONSTB1SS Stainless Steel Enclosure
The Klippon STB series enclosures are premium stainless steel junction boxes designed for the energy, process industry, and transportation sectors. Made from corrosion-resistant 1.4404 (316L) stainless steel, they offer IP66 protection, high-temperature sealing, and customizable mounting options. Suitable for hazardous environments, they meet international standards such as ATEX, IECEx, and GOST. Features include welded-on mounting, laser-welded seams, earth studs, and a broad selection of cable glands for top and bottom entries. These enclosures ensure durable, secure, and compliant solutions for industrial electrical connections.
Weidmuller KLIPPONSTB1SS Stainless Steel Enclosure Specifications:
- Material: Stainless steel 1.4404 (316L)
- Dimensions: Length 80mm, Width 120mm, Height 120mm, Fixing width 145mm
- Wall Thickness: 1.5mm
- Weight: 1.34kg
- Sealing: Silicone seal for ATEX version, high-temperature resistant
- Protection Class: IP66
- Mounting: Welded-on mounting foot, M5 hexagon cover fixing with integral fixing
- Cable Glands: Top and bottom entries include M12, M16, M20, M25, M32, and M40 sizes
- Resistance to shocks: Standard 10 J, optional 7 J
- Certifications: ATEX, IECEx, UL, Lloyds, GOST
- Surface Finish: Mirror polished
- Mounting Options: Horizontal and vertical assemblies with welded rails
- Environmental Standards: Compliant with EN 62208, EN 60079-0/7
- Approvals: CULUS, GERMANY Lloyd, GOST, IBEXUATEX, IECEX, Lloyd's Register
Buy the Weidmiiller Series Klippon STB: KLIPPONSTB1SS
Order the Weidmiiller KLIPPONSTB1SS stainless steel enclosure online today for energy, process, and transportation industry applications. Featuring IP66 protection, corrosion-resistant 1.4404 (316L) stainless steel, and flexible mounting options, it complies with ATEX, IECEx, and other international standards, making it ideal for hazardous environments. Equipped with multiple cable glands for seamless wiring, welded seams for durability, and a mirror-polished finish, this enclosure guarantees long-lasting performance, safety, and easy installation for your industrial needs.
Get Weidmiiller KLIPPONSTB1SS today—built for superior corrosion resistance, robust sealing, and international safety standards.
