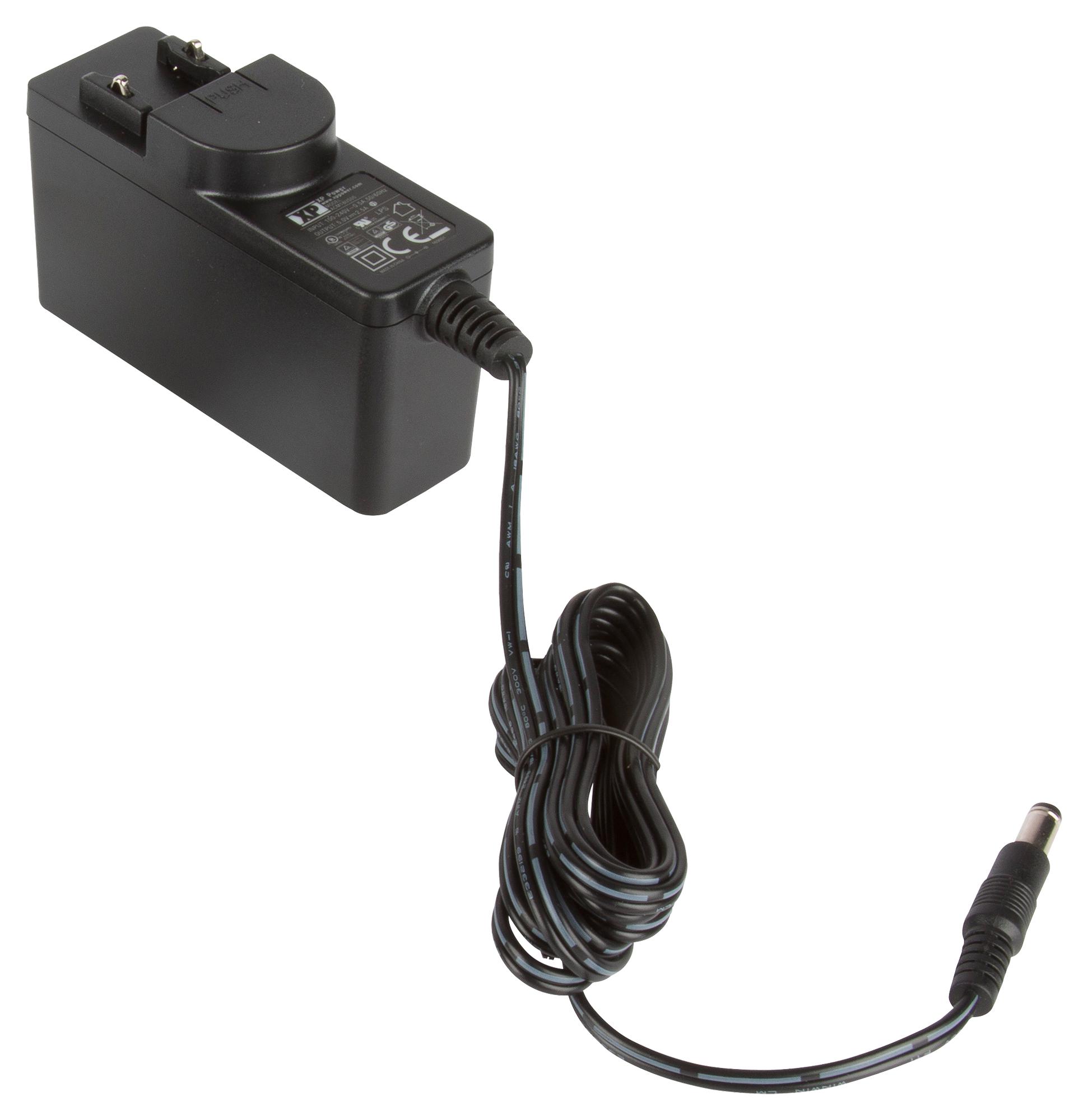

XP POWER ACM18US15 Power Adapter
The ACM18 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high active mode efficiency and very low no-load power consumption. These adapters feature a standard jack plug connector, making them suitable for various cost-sensitive industrial and medical applications while delivering industry-leading performance. They are equipped with interchangeable mains connectors, support output voltages from 5V to 24V, and have a Class II construction. The adapters are approved for medical and Information Technology Equipment (ITE) use, carry European CoC Tier 2 certification, and come with a 3-year warranty.
XP POWER ACM18US15 Power Adapter Specifications:
- Energy Efficiency Level VI compliant
- Output Power: 18W
- Output Voltages: 5V, 9V, 12V, 15V, 18V, 24V
- Output Current: 2500mA at 5V, 2000mA at 9V, 1500mA at 12V, 1250mA at 15V, 1000mA at 18V, 750mA at 24V
- Efficiency: Over 86.7% at 9V, 87.5% at 12V, 87.5% at 15V, 87.5% at 18V, 87.5% at 24V
- Dimensions (Body Only): 3.46 x 1.18 x 1.95 inches (88.0 x 30.0 x 49.5 mm)
- Input Voltage: Standard AC input, interchangeable mains connectors available
- Isolation: 4000 VAC input to output
- Leakage Current: 30–100 nA at 264 VAC
- Switching Frequency: 20–70 kHz
- Operating Temperature: 0°C to +60°C
- Certifications: UL, EN60601-1, IEC60601-1-2, CE, UKCA, COC Tier 2
- Warranty: 3 years
- Approvals: Medical and ITE approvals, European CoC Tier 2
- Construction: Class II, with optional white versions
Buy the XP Power Series ACM18 Power Adapter: ACM18US15
Purchase the XP Power Series ACM18US15 power adapter online today and enjoy industry-leading efficiency and reliability. With support for multiple voltages from 5V to 24V, interchangeable mains connectors, and a 3-year warranty, this versatile AC-DC power supply is ideal for medical, industrial, and IT applications. Its compliance with Energy Efficiency Level VI standards ensures low no-load power consumption and high active mode efficiency, helping to meet energy-saving requirements effortlessly. Secure your supply today for dependable, cost-effective operation.
Order your XP Power Series ACM18US15 high-efficiency power adapter today and ensure reliable performance for your industrial and medical projects.
Frequently Asked Questions
Where can I buy XP POWER ACM18US15?
You can click on the BUY or RFQ button to purchase ACM18US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM18US15?
You can download the ACM18US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM18US15?
XP POWER
