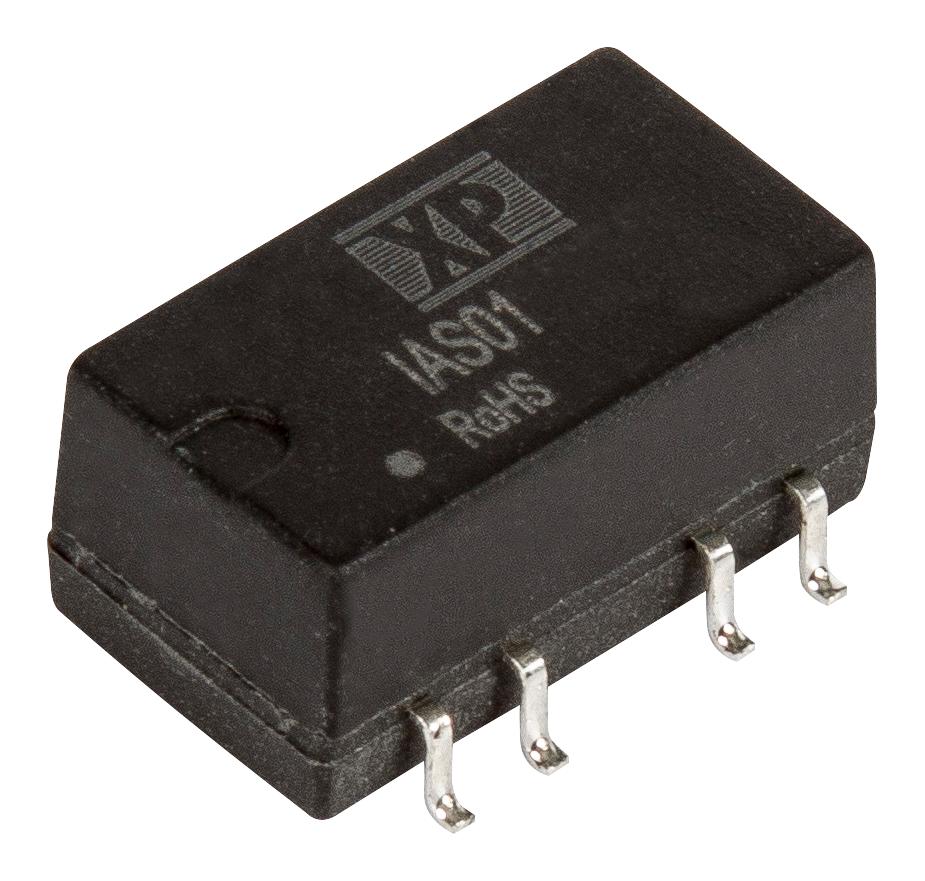

XP POWER IAS0105D09 voltage isolator module
The dual output power module offers reliable voltage rail isolation for distributed systems like digital, analog, and data circuits. Its compact design ensures high efficiency, with 1.5kV isolation and a 3.0kV option. It features continuous short circuit protection, operates from -40°C to +105°C, and maintains full load performance up to +100°C. Encased in an industry-standard DIP10 package, it supports a ±10% input voltage range, with safety approval under EN/UL 62368-1, making it ideal for industrial instrumentation and electronics applications.
XP POWER IAS0105D09 voltage isolator module Specifications:
- Input Voltage: ±10%
- Isolation Voltage: 1.5kVDC, optional 3kVDC
- Output Voltage: +5V to +24VDC
- Operating Temperature: -40°C to +105°C
- Full Load Temperature: up to +100°C
- Package: DIP10
- Efficiency: High efficiency design
- Short Circuit Protection: Continuous with auto recovery
- Safety Approvals: EN/UL 62368-1
- Dimensions: 0.600 inches x 0.335 inches x 0.285 inches (15.24mm x 8.50mm x 7.25mm)
- Operating Humidity: Non-condensing
- Case Material: Black flame-retardant UL94V-0 plastic
- Pin Material: Phosphor bronze
Buy the XP Power IAS01 – Reliable Isolator for Industrial Applications
Enhance your industrial or electronic systems with the high-performance voltage isolator from XP Power. This dual output module provides robust isolation up to 1.5kV with an optional 3kV, ensuring safe and reliable operation for sensitive digital, analog, and data circuits. Its compact design fits neatly into various applications, offers continuous short circuit protection, and operates within a wide temperature range from -40°C to +105°C, maintaining full load at +100°C. Safety is guaranteed with EN/UL 62368-1 approvals, making it an essential component for modern electrical systems.
Get XP Power IAS01 series today—built for high efficiency, voltage isolation, and reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER IAS0105D09?
You can click on the BUY or RFQ button to purchase IAS0105D09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IAS0105D09?
You can download the IAS0105D09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IAS0105D09?
XP POWER
