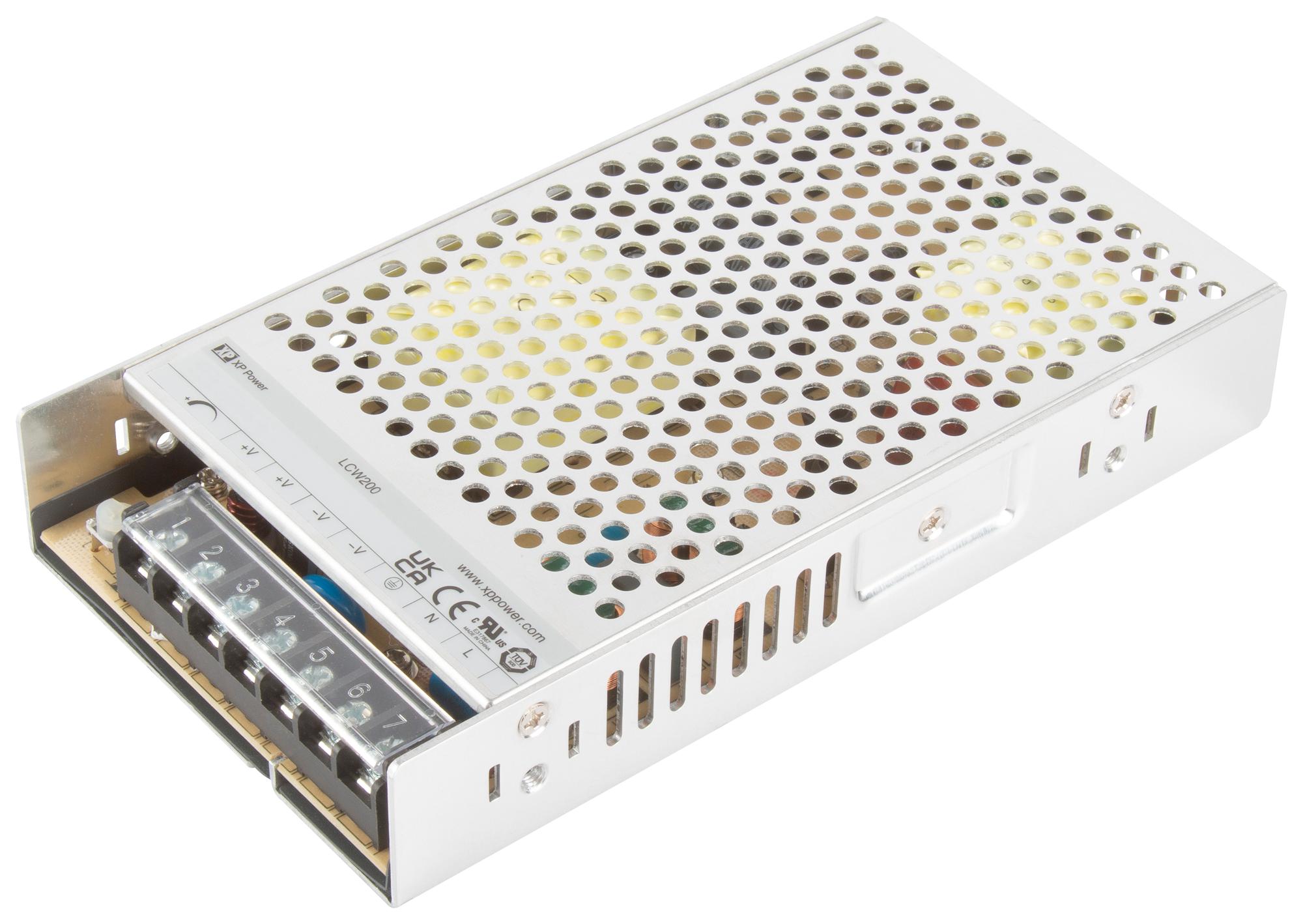

XP POWER LCW200PS15 Power Supply
The LCW200 series regulated output convection-cooled AC to DC power supplies deliver 200W of power with wide input voltage from 85-305VAC, active PFC, and output voltage adjustment. Designed for industrial electronics and automation, they feature protections against short circuit, overcurrent, overload, and overvoltage. Certified for safety (UL, EN, CE, UKCA), with efficiencies up to 90%, and operate in temperatures from -30°C to +70°C. The compact chassis measures approximately 7.05 x 3.89 x 1.18 inches, making them ideal for auxiliary power, security, lighting, and vending applications worldwide.
XP POWER LCW200PS15 Power Supply Specifications:
- Power: 200W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: Yes
- Efficiency: Up to 90%
- Protections: Short circuit, overcurrent, overload, overvoltage
- Switching Frequency: 65 kHz
- Dimensions: 7.05 inches x 3.89 inches x 1.18 inches (179mm x 99mm x 30mm)
- Temperature Range: -30°C to +70°C
- Certifications: UL (UL62368-1), EN (EN62368-1), CE, UKCA
- Material: Aluminum chassis with galvanized steel cover
- Emissions: Class B conducted & radiated
- Operating Temperature: -30°C to +70°C
- Cooling: Natural convection
- Warranty: 3 years
Buy the XP Power LCW200PS15 – Reliable Industrial Power Supply for Automation and Security
Get the XP Power LCW200PS15 convection-cooled power supply online today and ensure your industrial electronics operate reliably. With 200W power capacity, wide input voltage range of 85-305VAC, active PFC, high efficiency up to 90%, and comprehensive protections against short circuit, overload, and overvoltage, this unit is perfect for automation, security systems, lighting, and vending applications. Its compact design measures just 7.05 x 3.89 x 1.18 inches, making installation easy in tight spaces. Invest in this certified, durable power supply now for long-term operational excellence.
Buy XP Power LCW200PS15 now and experience unmatched reliability and performance for your industrial power needs.
Frequently Asked Questions
Where can I buy XP POWER LCW200PS15?
You can click on the BUY or RFQ button to purchase LCW200PS15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW200PS15?
You can download the LCW200PS15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW200PS15?
XP POWER
