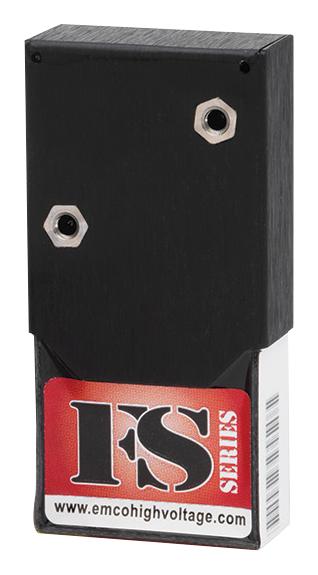

XP POWER FS0515 High-Voltage Converter
The FS Series high-voltage power converters offer reliable, isolated DC to high voltage DC conversion in compact PC-mount packages, ranging from 200V to 6kV at 10W. Featuring a low turn-on voltage of 0.7V, they provide proportional output controlled by input voltage, with minimal ripple and EMI/RFI. Designed for long-term reliability, these models include arc surge, short circuit, over-temperature, and over-voltage protections. Suitable for applications like electrophoresis, capacitor charging, and electrostatic chucks, they deliver stable, efficient high-voltage outputs with galvanic isolation and enhanced thermal management.
XP POWER FS0515 High-Voltage Converter Specifications:
- Output Voltage Range: 200V to 6kV
- Output Power: 10W
- Turn-On Voltage: 0.7V typical
- Isolation Voltage: +/-2,500V + Vout
- Leakage Current: <100nA
- Coupling Capacitance: <100pF
- Frequency Range: 25 to 125kHz
- Temperature Range (Case): -55°C to +85°C
- Input Voltage Options: 12V, 15V, 24V, 28V
- Efficiency: 75% - 85%
- Input Ripple Current: Low
- EMC/RFI Emissions: Low
- Protection Features: Arc, Short Circuit, Over-Temperature, Over-Voltage
- MTBF: >840,000 hours
- Physical Size: Approximately 2.25 x 1.12 x 0.50 inches
- Material: Anodized aluminum heatsink surface with mounting options
- Certifications: RoHS compliant
Buy the Buy EMCO High Voltage Converter Part Number FS0515 Online
Purchase the EMCO FS0515 high-voltage converter online today and benefit from a compact, reliable, and efficient solution for generating up to 6kV at 10W. With built-in protections including arc, short circuit, and over-temperature safeguards, this converter ensures long-term durability and stable performance. Its proportional output control via input voltage allows precise high-voltage management, making it ideal for electrophoresis, capacitor charging, and electrostatic applications. Easy to install with high galvanic isolation, it's the trusted choice for demanding industrial environments.
Buy EMCO FS0515 high-voltage converter now and experience unmatched reliability, efficient 10W power, and advanced safety features for your high-voltage applications.
Frequently Asked Questions
Where can I buy XP POWER FS0515?
You can click on the BUY or RFQ button to purchase FS0515 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FS0515?
You can download the FS0515 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FS0515?
XP POWER
