XP POWER ACM36US18 Industrial Power Adapter

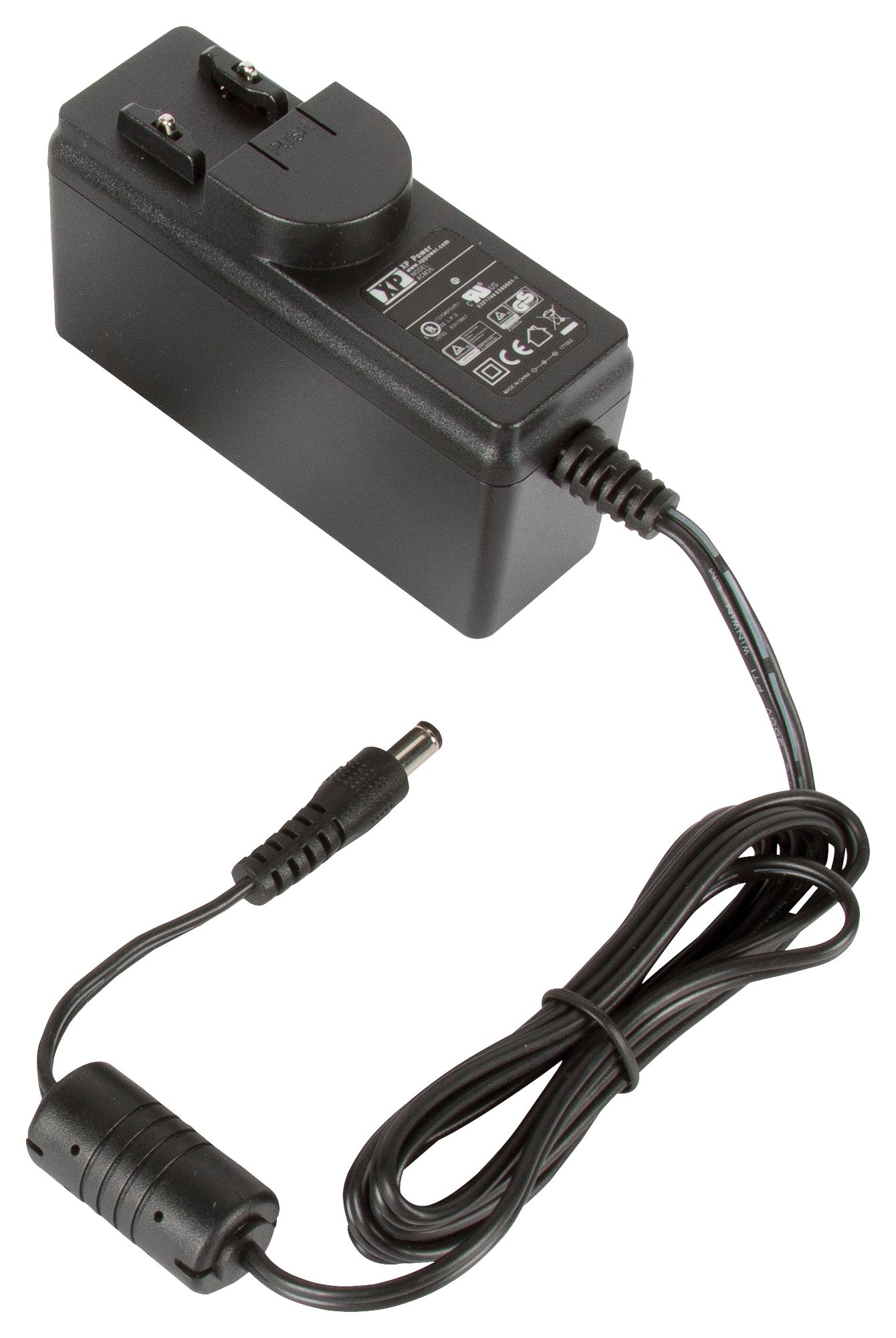

The XP Power ACM36US18 is a compact 36W AC to DC power adapter suitable for industrial and medical applications. It features high efficiency, low no-load power consumption, and complies with Energy Efficiency Level VI standards. The adaptor provides a reliable 18V output at 2A, with a typical efficiency of 89.6% and low ripple of 150mV peak-to-peak. Designed with a 4-second start-up delay, overload protection, and certified to UL, TUV, CB IEC, and medical standards, it ensures safe, stable operation in demanding environments. Its dimensions are 96.7mm x 33mm x 59.5mm, and it weighs 80 grams.
XP POWER ACM36US18 Industrial Power Adapter Specifications:
- Output Power: 36W
- Output Voltage: 18V
- Output Current: 2000mA
- Efficiency: 89.6%
- Input Voltage Range: 90VAC to 264VAC, 47Hz to 63Hz
- Ripple & Noise: 150mV pk-pk
- Leakage Current: 50μA at 264VAC
- Isolation: 4000VAC (2 x MOPP)
- Protection: Short circuit, continuous, trip, auto-recovery
- Operating Temperature: 0°C to +60°C
- Dimensions: 96.7 x 33 x 59.5 mm
- Weight: 80 grams
- Certifications: UL, TUV, CB IEC, CE LVD, IEC60601-1
- Switching Frequency: 24-70kHz
- Start-up Delay: 4 seconds
Buy the Buy XP Power AC to DC Power Supply Part Number ACM36US18 Online
Purchase the XP Power ACM36US18 power supply online for reliable industrial and medical use. Offering 36W of power with an 18V output at 2A, it features high efficiency, low no-load power consumption, and comprehensive safety certifications. This compact, lightweight adapter ensures stable operation across temperatures from 0°C to +60°C with minimal ripple. Ideal for demanding environments, it includes short circuit protection, auto-recovery, and complies with stringent EMC standards. Easy to integrate into medical and industrial systems, it guarantees performance, safety, and durability for your application needs.
Get XP Power ACM36US18 today—built for precision, reliability, and long-lasting durability in medical and industrial environments.
