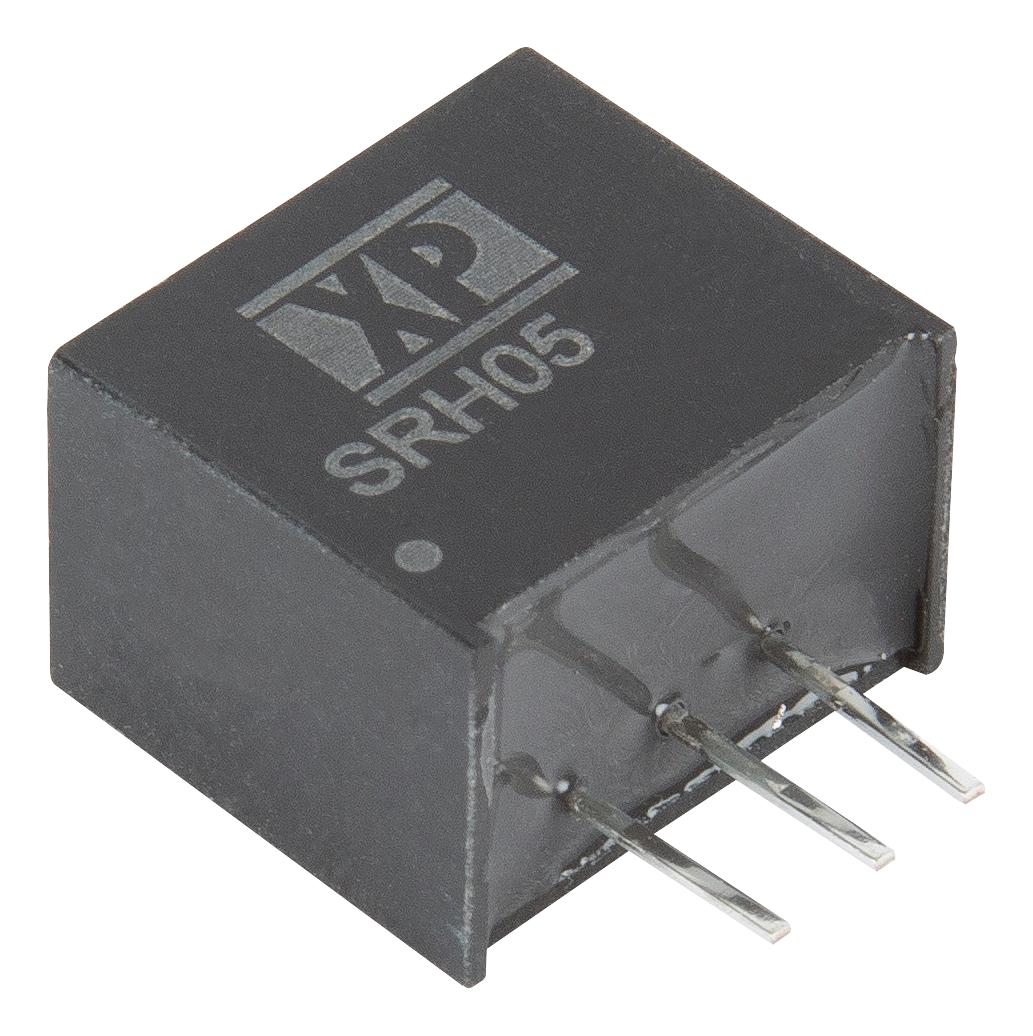

XP POWER SRH05S05 DC-DC Converter
The SRHOS Series DC-DC converters by XP Power are compact, high-efficiency switching regulators designed for input voltages from 9V to 72V. With a SIP package, these modules deliver up to 0.5A current, offering models with output voltages from 3.3V to 15V. They feature ultra-wide input range, low ripple noise, high efficiency (up to 92%), robust short-circuit protection, and operate at temperatures from -40°C to +85°C. Mechanical dimensions are 0.46 x 0.29 x 0.4 inches, making them ideal for industrial automation and power supply applications.
XP POWER SRH05S05 DC-DC Converter Specifications:
- Input Voltage Range: 9-72 VDC
- Output Voltages: 3.3V, 5V, 6.5V, 7.2V, 9V, 12V, 15V
- Output Current: 0.5A per model
- Efficiency: Up to 92%
- Ripple & Noise: 75 mV pk-pk
- Input Ripple Filter: 35 mA pk-pk through 12 pH inductor and 47 uF capacitor
- Input Surge Voltage: 75 V for 100 ms
- Operating Temperature: -40°C to +85°C
- Isolation: Non-isolated
- Switching Frequency: 720-800 kHz
- Dimensions: 0.46 x 0.29 x 0.4 inches (11.68 x 7.5 x 10.16 mm)
- Weight: 0.004 lbs (2.1 g)
- MTBF: >4.5 million hours
- Certifications: Class B Conducted & Radiated Emissions, UL Listed
- Protection: Continuous short circuit with auto recovery
- Ambient Humidity: Non-condensing
- Cooling: Natural convection
Buy the XP Power Series DC-DC Converter: SRH05S05
Discover the reliable and efficient XP Power Series DC-DC Converter SRH05S05, delivering 5V at 0.5A. Its ultra-wide input range from 9V to 72V and compact SIP package make it ideal for industrial and automation applications. With efficiencies reaching up to 92%, it ensures minimal power loss. Designed for harsh environments, it operates from -40°C to +85°C, supporting robust performance. Benefit from low ripple, comprehensive protections, and a MTBF exceeding 4.5 million hours. Purchase online today for dependable stable power your systems need.
Order your XP Power Series DC-DC Converter SRH05S05 today and enhance your power solutions with reliable, high-efficiency performance for industrial projects.
