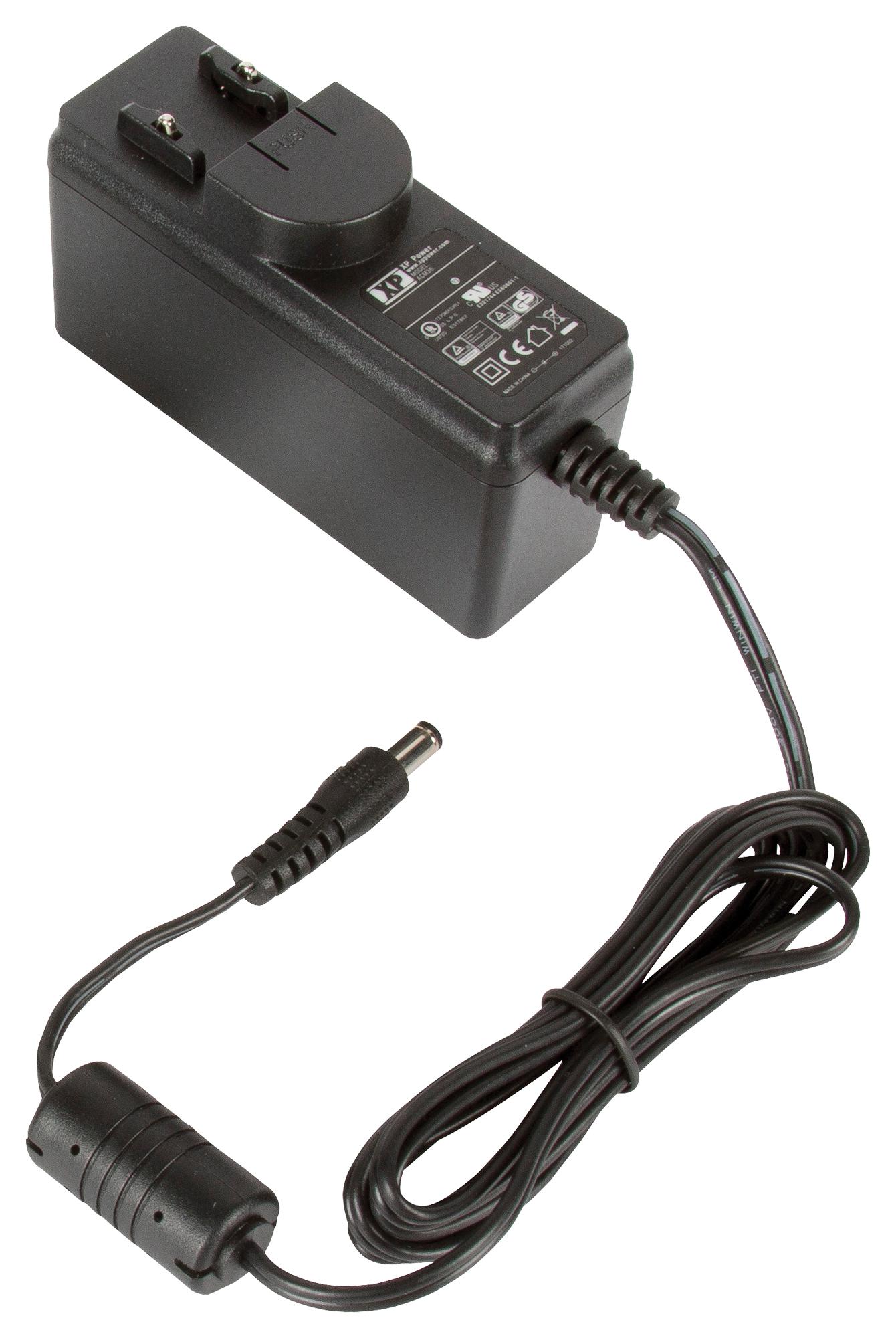

XP POWER ACM36US30 Power Adapter
The XP Power ACM36US30 is a 36W AC to DC wall plug adaptor designed for industrial and medical use. It features a 30V output at 1.2A, with high efficiency of 89.3% and low no-load power consumption of 75mW. Compliant with energy efficiency level VI, it offers excellent performance with a 4000VAC isolation, earthquake-level EMC standards, and active short circuit protection with auto-recovery. Its compact dimensions are 96.7 x 33 x 59.5mm, and it operates reliably within 0°C to +60°C ambient temperature, suitable for cost-sensitive applications requiring dependable power solutions.
XP POWER ACM36US30 Power Adapter Specifications:
- Power Output: 36W
- Output Voltage: 30V
- Output Current: 1.2A
- Efficiency: 89.3%
- Energy Efficiency Level: VI
- Isolation: 4000VAC (input to output)
- Leakage Current: 50µA at 264VAC, 60Hz
- Ripple & Noise: 150mV pk-pk
- Switching Frequency: 24-70kHz
- Dimensions: 96.7 x 33 x 59.5mm
- Weight: 80g
- Operating Temperature: 0°C to +60°C
- Input Voltage Range: 90VAC to 264VAC, 47Hz to 63Hz
- Start-up Delay: 4 seconds
- Inrush Current: 70A at 240VAC
Buy the Buy XP Power AC-DC Power Supplies Part Number ACM36US30 Online
Purchase the XP Power ACM36US30 power adapter online today. This highly efficient 36W wall plug unit provides a stable 30V output at 1.2A, ideal for medical and industrial uses. It complies with energy efficiency level VI standards, featuring low no-load power consumption and excellent EMC performance. Its compact design with dimensions of 96.7 x 33 x 59.5mm makes it perfect for space-constrained installations. Reliable and robust, it offers 4000VAC isolation, active short circuit protection, and operates reliably from 0°C to +60°C, ensuring dependable power delivery for sensitive projects.
Order your XP Power Series ACM36US30 36W medical-grade power adapter today and ensure reliable, efficient power for your industrial and medical applications.
Frequently Asked Questions
Where can I buy XP POWER ACM36US30?
You can click on the BUY or RFQ button to purchase ACM36US30 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM36US30?
You can download the ACM36US30 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM36US30?
XP POWER
