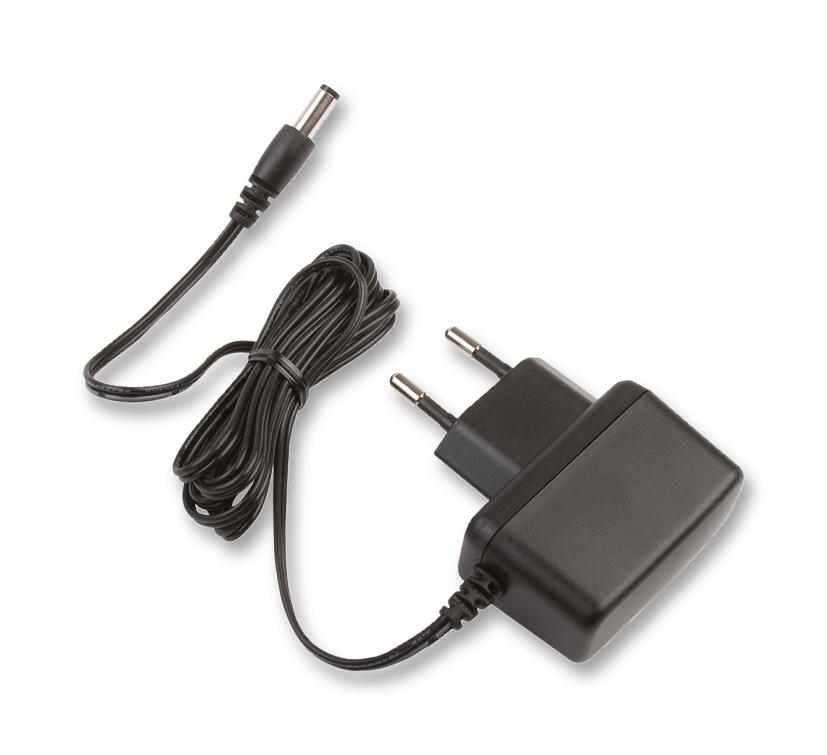

XP POWER VEL12US120EUJA AC-DC Power Supply
The VEL12 series AC-DC power supplies by XP Power deliver 12 watts of power with high efficiency, low no-load consumption, and compliance with Energy Efficiency Level VI standards. Designed for cost-sensitive applications, these adaptors feature universal input voltage (90-264 VAC), multiple output options from 5.0 V to 12.0 V, and compact dimensions. Suitable for various industrial or consumer electronics requiring reliable, low-cost power conversion with protected circuitry, low ripple, and excellent regulation ensuring stable performance across different loads and environmental conditions.
XP POWER VEL12US120EUJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Efficiency: 79-83% at 25% to 100% load
- Output Voltage: from 5.0 V to 12.0 V (models VEL12US050-XX-JA, VEL12US090-XX-JA, VEL12US120-X-JA)
- Output Current: up to 2100 mA
- Total Regulation: 5%
- Isolation: 3000 VAC input to output
- Switching Frequency: 24-70 kHz (variable)
- Power Factor: Class A
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 3-95% RH, non-condensing
- Dimensions: US: 2.99 x 1.16 x 1.73 in; EU: 2.99 x 1.16 x 1.55 in; Model-specific details available
- Weight: approximately 1 lb (0.45 kg)
- Protection: Built-in fuse, short circuit protection, thermal shutdown
Buy the Buy XP Power VEL12 Series Power Supply Part Number VEL12US120EUJA Online
Purchase the XP Power VEL12 Series AC-DC Power Supply online to ensure your electronic devices operate with high efficiency, stable regulation, and low power consumption. Designed for cost-sensitive applications, this power supply provides reliable, high-quality power conversion with universal input voltage and multiple output options from 5V to 12V. Its compact design, robust protection features, and compliance with modern energy efficiency standards make it ideal for industrial, commercial, and consumer electronics requiring dependable power at a competitive price. Order today for fast delivery and peace of mind.
Get XP Power VEL12US120EUJA today—built for efficiency, durability, and reliable power delivery for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy XP POWER VEL12US120EUJA?
You can click on the BUY or RFQ button to purchase VEL12US120EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL12US120EUJA?
You can download the VEL12US120EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL12US120EUJA?
XP POWER
