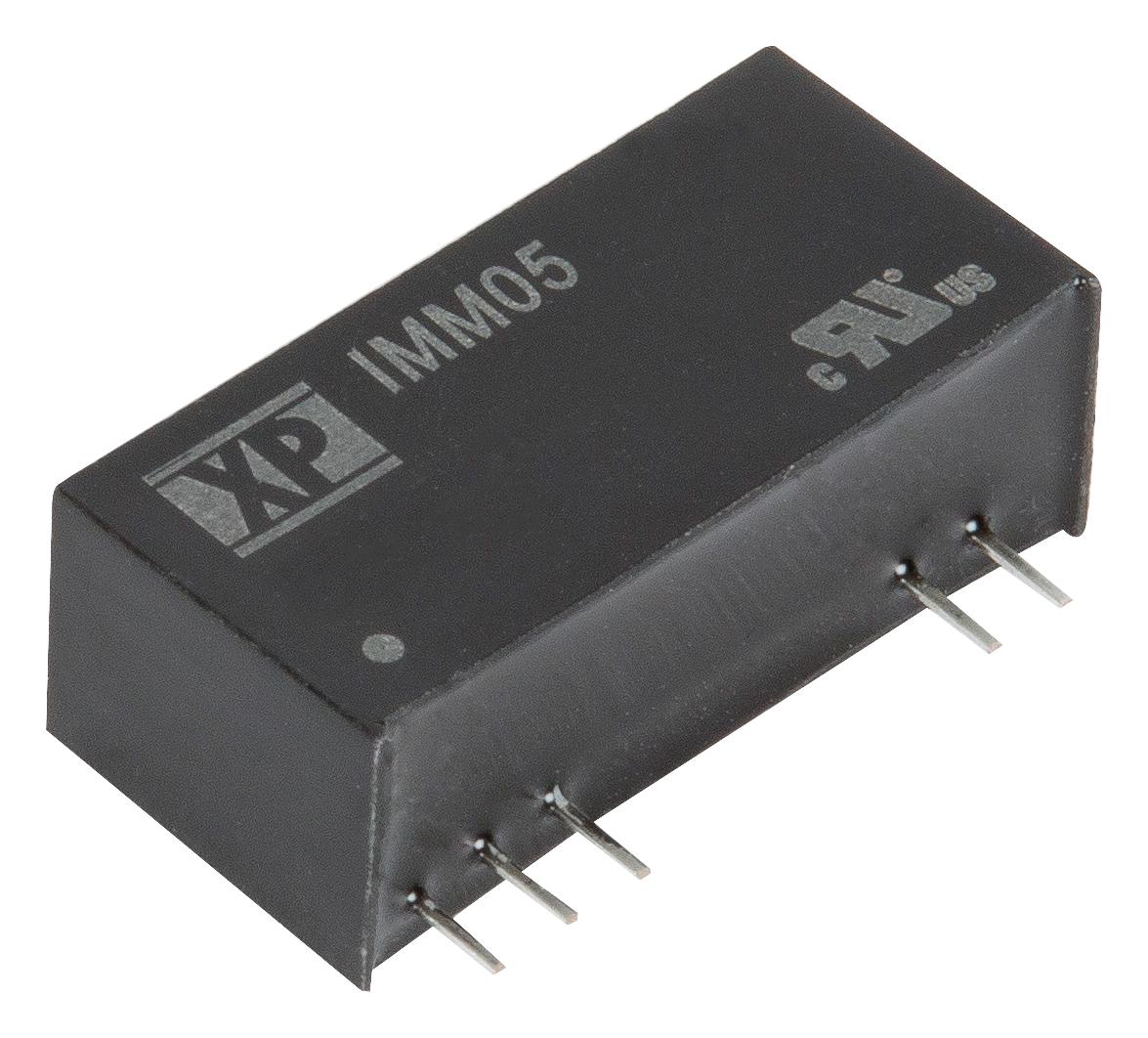

XP POWER IMM0512S12 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution with isolation features suitable for medical applications. These converters offer regulated single and dual output voltages ranging from 3.3V to ±15V, with a 2:1 input voltage range. Designed in a compact SIP9 package, they feature 1500VAC isolation, a 1 x MOPP at 250VAC, and remote On/Off control. They are certified for worldwide medical standards and operate efficiently from 20°C to 100°C, with full load capability up to 60°C.
XP POWER IMM0512S12 Medical DC-DC Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 2:1, VDC from 3.3V to 15V
- Output Voltage: range from 3.3V to ±15V, regulated
- Isolation Voltage: 1500 VAC
- Isolation Type: Basic insulation, 1x MOPP at 250VAC
- Package: SIP9, ultra compact
- Operating Temperature: -20°C to +100°C
- Full Load Operation Up to 60°C
- Remote On/Off control
- Dimensions: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Operating at high efficiency with 85-90% typical
- Certification: Worldwide medical safety standards
- Leakage Current: Low leakage current suitable for BF & CF medical applications
- Weight: Approximately 6.2 grams
Buy the Buy XP Power IMM05 Series DC-DC Converter Part Number IMM0512S12 Online
Purchase the XP Power IMM05 Series medical-grade DC-DC converter online today for dependable, compact power in medical applications. This 5W converter features 1500VAC isolation, regulated single and dual outputs from 3.3V to ±15V, and remote On/Off control for easy integration. Designed with a SIP9 ultra-compact form factor, it operates efficiently from -20°C to +100°C, with full-load operation up to 60°C. Certified for worldwide medical safety standards, it ensures low leakage current and reliable performance for BF & CF medical devices.
Order your XP Power IMM05 Series IMM0512S12 today and give your medical projects reliable DC-DC power with safety and efficiency.
Frequently Asked Questions
Where can I buy XP POWER IMM0512S12?
You can click on the BUY or RFQ button to purchase IMM0512S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0512S12?
You can download the IMM0512S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0512S12?
XP POWER
