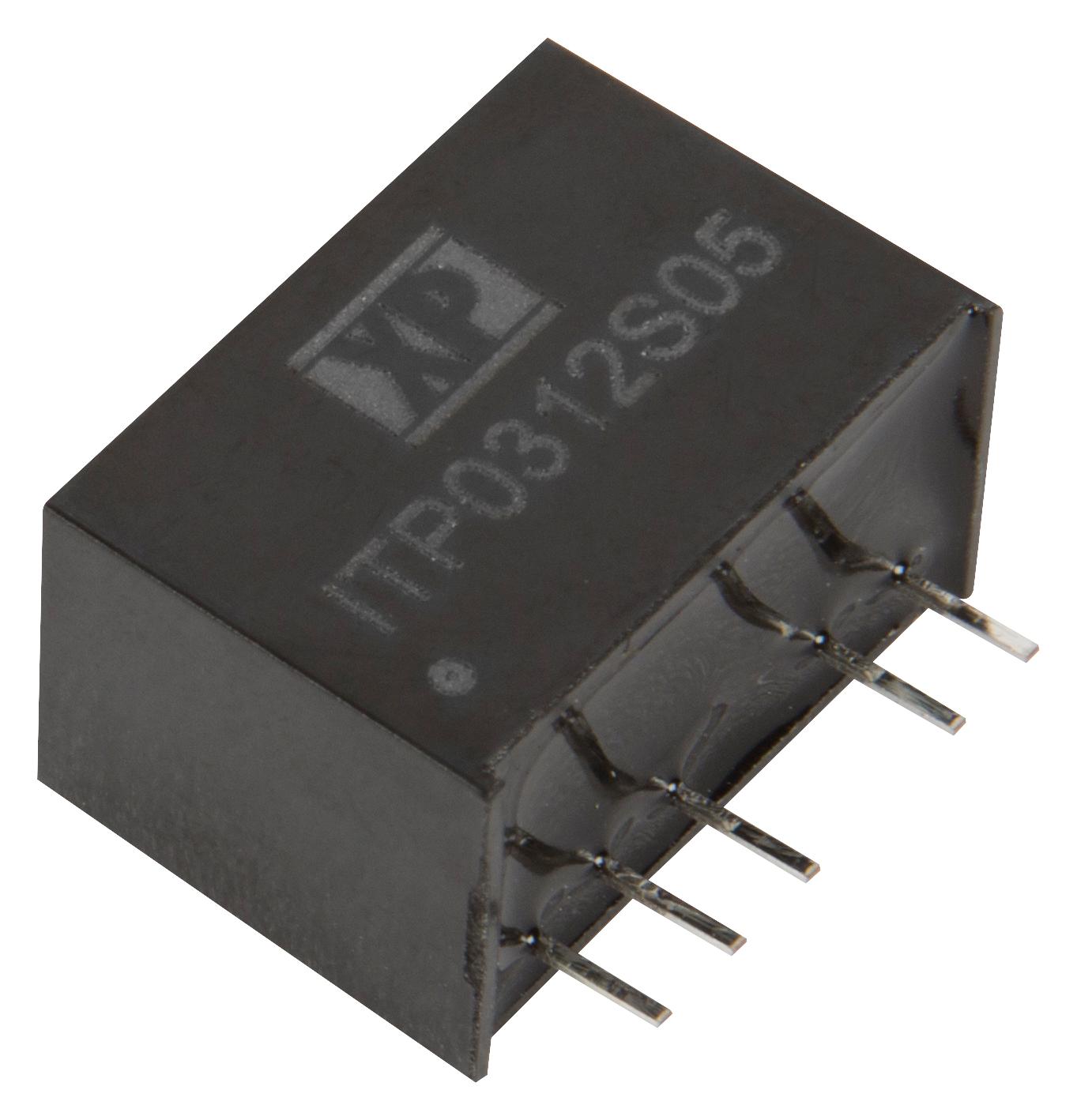

XP POWER ITP0312S05 DC-DC Converter Module
The ITP series is a compact 3W DC-DC converter module designed for versatile applications, offering regulated single and dual outputs ranging from 3.3V to 15V DC. It features a wide 4:1 input voltage range (4.5 to 75VDC), high efficiency, and robust encapsulated construction suitable for industrial environments. The module includes 1.6kV DC input/output isolation, short-circuit protection, and remote On/Off control (for single output versions). It operates reliably across a temperature range from -40°C to +75°C, with full power output up to +70°C, complying with EN55032 standards.
XP POWER ITP0312S05 DC-DC Converter Module Specifications:
- Power: 3 Watts
- Input Voltage Range: 4.5 to 75 VDC (wide 4:1 input range)
- Output Voltage: 3.3V, 5V, 12V, or 15V (regulated)
- Output Current: varies by model, up to 700mA
- Input/Output Isolation: 1.6kVDC
- Efficiency: up to 83%
- Operating Temperature: -40°C to +75°C
- Full Power Temp: up to +70°C
- Package: SIP6 ultra-compact encapsulated
- Short-Circuit Protection: Yes
- Remote On/Off: Yes (single output models)
- Compliance: EN55032, UL62368-1, CE LVD
- Dimensions: approximately 17.0 x 10.1 x 11.7 mm
Buy the Buy XP Power ITP Series Part Number ITP0312S05 Online
Purchase the XP Power ITP0312S05 DC-DC converter online today to ensure your industrial and electronic projects benefit from high-efficiency power conversion. This 3W module features a wide input voltage range from 4.5V to 75VDC, regulated outputs from 3.3V to 15V, and robust encapsulation suitable for harsh environments. With 1.6kVDC input/output isolation, short-circuit protection, and remote On/Off control for single output versions, it guarantees reliable performance across a broad operating temperature range, fully compliant with EN55032 standards.
Buy XP Power ITP0312S05 now and experience unmatched reliability, high efficiency, and versatile industrial-grade power conversion.
Frequently Asked Questions
Where can I buy XP POWER ITP0312S05?
You can click on the BUY or RFQ button to purchase ITP0312S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITP0312S05?
You can download the ITP0312S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITP0312S05?
XP POWER
