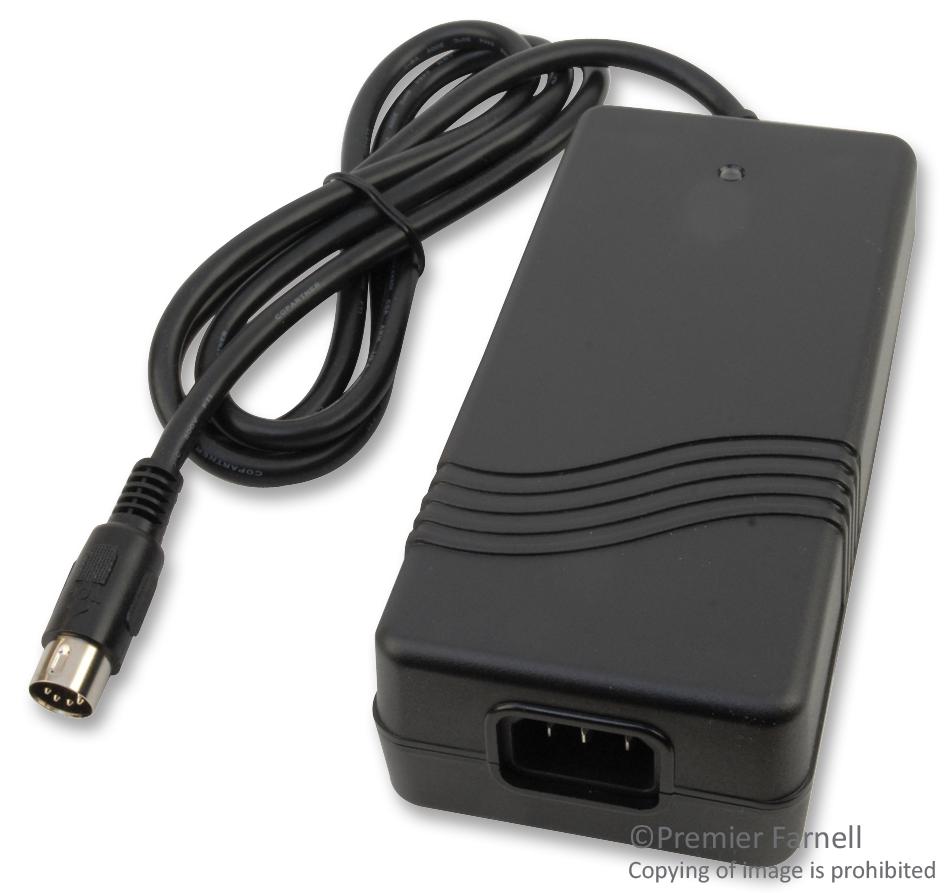

XP POWER AEH80US12 80 Watt Power Supply
The XP POWER AEH80US12 is a versatile 80-watt AC-DC power supply designed to meet the demands of various industrial applications. It offers a universal input voltage range (90-264 VAC) and a wide selection of output voltages, including non-standard options available upon request. Key features include high efficiency (up to 80%), multiple output configurations, and robust protection mechanisms such as overvoltage and overload protection. The AEH80US12 is ideal for powering equipment in industrial automation, medical devices, and other demanding environments where a compact, reliable, and efficient power supply is essential.
XP POWER AEH80US12 80 Watt Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 1.9/1.5 A for AEH80, at 115/230 VAC
- Inrush Current: 30 A max at 230 VAC, cold start
- Earth Leakage Current: <0.75 mA max at 230 VAC/50 Hz
- Power Factor: EN61000-3-2 class A
- Output Voltage: See tables, non-standard voltages available
- Initial Set Accuracy: 5%
- Start Up Delay: 2 s max
- Hold Up Time: 16 ms min
- Line Regulation: See tables
- Load Regulation: See tables
- Transient Response: 4% max deviation, recovery to within 1% in 4 ms for a 50% load change
- Ripple & Noise: 2% pk-pk for outputs≤3.3 V, 1% pk-pk for all other outputs
- Overvoltage Protection: 112-132% Vnom, auto reset
- Overload Protection: Output 1 only 110-150% of nominal
- Temperature Coefficient: ±0.04%/°C max
- Efficiency: Up to 80%
- Isolation: 3000 VAC Input to Output, 1500 VAC Input to Ground, 500 VAC Output to Ground
- Switching Frequency: 58 kHz typical
- MTBF: 100 kHrs per MIL-HDBK-217F at 25 °C
- Operating Temperature: 0 °C to +60 °C, derate linearly from 100% load at +40 °C to 50% load at +60 °C
- Operating Humidity: 5-95% RH, non-condensing
- Storage Temperature: -40 °C to +85 °C
- Vibration: 2 g on 3 axes
- Emissions: EN55022 level B, conducted and radiated
- Harmonic Currents: EN61000-3-2, Class A
- Voltage Flicker: EN61000-3-3
- ESD Immunity: EN61000-4-2, level 2 Perf Criteria A
- Radiated Immunity: EN61000-4-3, level 3 Perf Criteria A
- EFT/Burst: EN61000-4-4, level 2 Perf Criteria A
- Surge: EN61000-4-5, level 3 Perf Criteria A
- Conducted Immunity: EN61000-4-6, level 2 Perf Criteria A
- Dips & Interruptions: EN61000-4-11 30% 10 ms, 60% 100 ms, 100% 5000 ms Perf Criteria A, B, B
- Safety Approvals: AEH45: EN62368-1, UL 60950-1, AEH80: EN62368-1, UL62368-1
